Calibrate NEC monitor (for LCD2490WUXi and LCD2490WUXi2)

Procedure

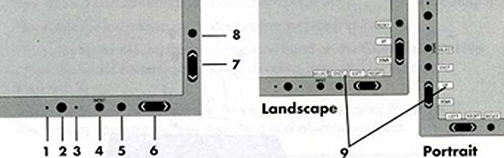

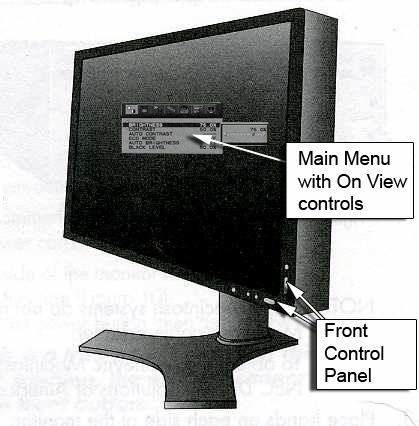

Refer to the illustrations below for control locations and functions.


Name	Description
1 Ambi-Bright Sensor	Detects the level of ambient lighting, allowing the monitor to adjust to various settings for more comfortable viewing. Do not cover this sensor.
2 Power	Turns the monitor on and off.
3 LED	Indicates the power is on. Can be changed between blue and green in the Advanced On-Screen Manager (OSM) Control menu.
4 Input/Select	Enters the OSM Control menu and OSM sub-menus. Changes the input source when not in the OSM Control menu.
5 Exit	Exits the OSM Control menu and sub-menu.
6 Left/Right*	Navigates to the left or right through the OSM Control menu.
7 Up/Down*	Navigates up or down through the OSM Control menu.
8 Reset/Rotate OSM	Resets the OSM back to factory settings. Pressing this button when the OSM is not displaying rotates the OSM Control menu between portrait and landscape mode.
9 Key Guide	Displays on the screen when the OSM Control menu is accessed. The Key Guide rotates when the OSM Control menu is rotated.

* The Left/Right and Up/Down button functionality is interchangeable depending on the OSM orientation (landscape or portrait).

Refer to the table below for monitor settings.

Table 1. Monitor settings
Monitor settings
	LCD2490WUXi	LCD2490WUXi2
Brightness:	50% (or the allowable maximum value that is less than 50%)	72.1% (or the allowable maximum value that is less than 72.1%)
Contrast:	40.3%	50.5%
Black Level:	50%	50%
ECO Mode:	Off	Off
Auto Brightness:	Off	Off
RGB <TAB>
Color Temp:	Native	Native
