Adds or removes cradle stopper shims to set the cradle home position within tolerance.
Prerequisites
| Personnel requirements |
|---|
| Required persons | Preliminary requirements | Procedure | Finalization |
|---|
| 1 | - | 10 minutes | - |
| Tools and test equipment |
|---|
| Item | Quantity | Part number | Manufacturer |
|---|
| Stainless Steel Ruler | 1 | 46-198452P2 | - |
| Nonmagnetic Titanium Service Tool Kit, Small Set | 1 | 5113258 | - |
Procedure
- Dock the table.
Note: The table should remain docked throughout the process of adjusting the cradle home position.
- Measure the distance from the tabletop to the cradle at the magnet end.
Figure 1. Home position measurement
| 1 | Cradle home position gap |
| 2 | Magnet end of the cradle |
| 3 | End of the tabletop |
- If the distance is greater than 2 mm, adjust the distance as follows:
- Loosen the three screws securing the cradle stopper to the table.

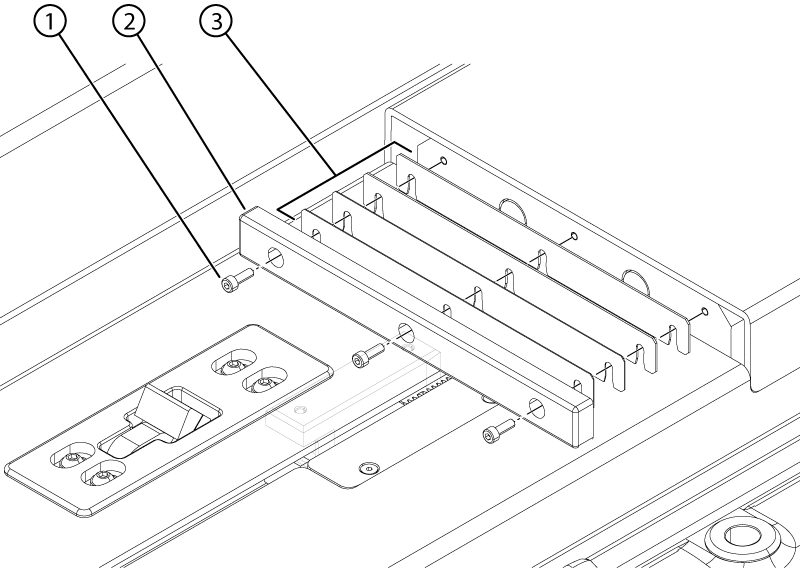

Figure 2. Cradle stopper shims
| 1 | Screw |
| 2 | Cradle stopper |
| 3 | Shims |
- Adjust the quantity of 1 mm shims and 0.5 mm shims as required to make the distance less than or equal to 2 mm.
Note: All required shims are installed on or shipped with the table. Remove or add shims to make the adjustment.
- Tighten the three screws securing the cradle stopper to the table.
