• SIGNA™ Hero 3.0T Service Methods
  • 5852800-8EN Revision 1.0
  • Object ID: 00000018WIA30EA6430GYZ
  • Topic ID: id_2011018 Version: 6.7
  • Date: Jul 13, 2021 4:05:17 PM

3.0T GEM Peripheral Vascular (PV) array coil FRUs

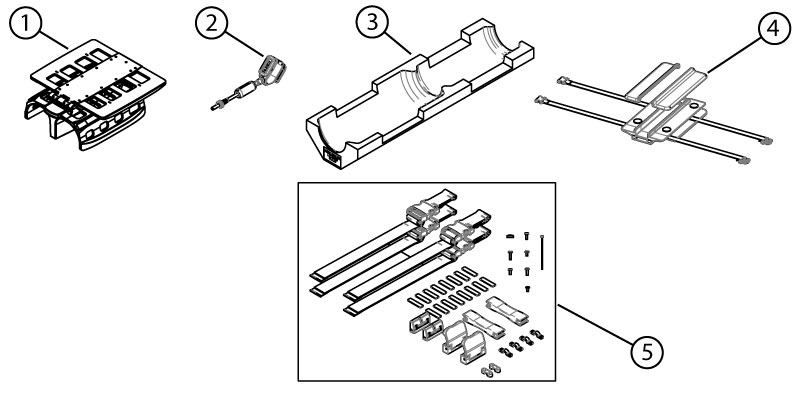

Figure 1. 3.0T GEM Peripheral Vascular (PV) array coil
Table 1. 3.0T GEM PV array coil
ItemPart numberDescription
154089353.0T GEM Peripheral Vascular (PV) Array Coil
25716826Peripheral Vascular (PV) Cable FRU
35405749Peripheral Vascular (PV) Phantom Positioner
45548551Peripheral Vascular (PV) Ramp Pad
