Air Anterior Array (AA) coil FRUs

Note: AIR Coil system cables are not FRUs. The housing of the coil or P-connector are not intended to be opened in the field.

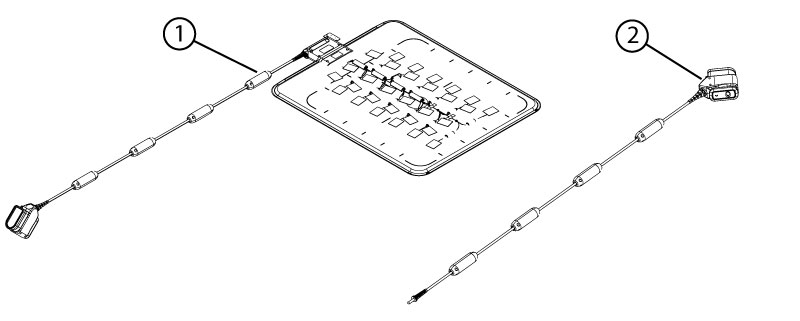

Figure 1. Air Anterior Array (AA) coil
Table 1. Air AA coil
ItemPart numberDescription
15030190Air Anterior Array (AA) Coil FRU
5030192Air Anterior Array (AA) Coil Redesign
Note: Requires PX 28.0_R05 or later.
25503457Anterior Array (AA) Strap FRU
