• SIGNA™ Hero 3.0T Service Methods
  • 5852800-8EN Revision 1.0
  • Object ID: 00000018WIA3066E630GYZ
  • Topic ID: id_2011866 Version: 7.1
  • Date: Jul 13, 2021 4:05:22 PM

48-channel head coil FRUs

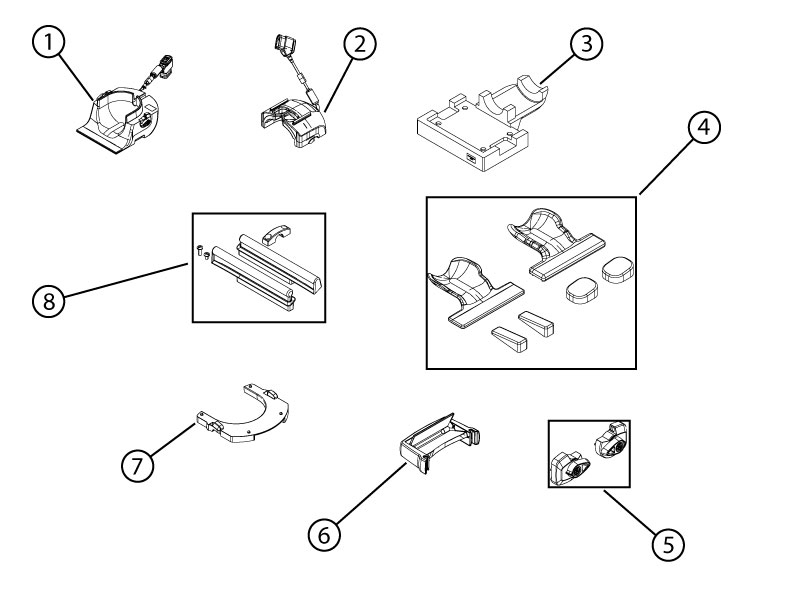

Figure 1. 48-channel head coil
Table 1. 48-channel head coil
ItemPart numberDescription
1575812248-Channel Head Coil, Posterior with Cable FRU
584100048-Channel Head Coil, non-MEMS, Posterior with Cable FRU
2576521748-Channel Head Coil, Anterior with Cable FRU
584100248-Channel Head Coil, non-MEMS, Anterior with Cable FRU
3575811548-Channel Head Coil Phantom Positioner FRU
4575811648-Channel Head Coil Pad Kit FRU
5575811848-Channel Head Coil Latch Kit FRU
6575811948-Channel Head Coil Mirror Assembly FRU
7575812048-Channel Head Coil Spacer FRU
8575812148-Channel Head Coil Small Parts Kit FRU
