3-channel shoulder coil FRUs

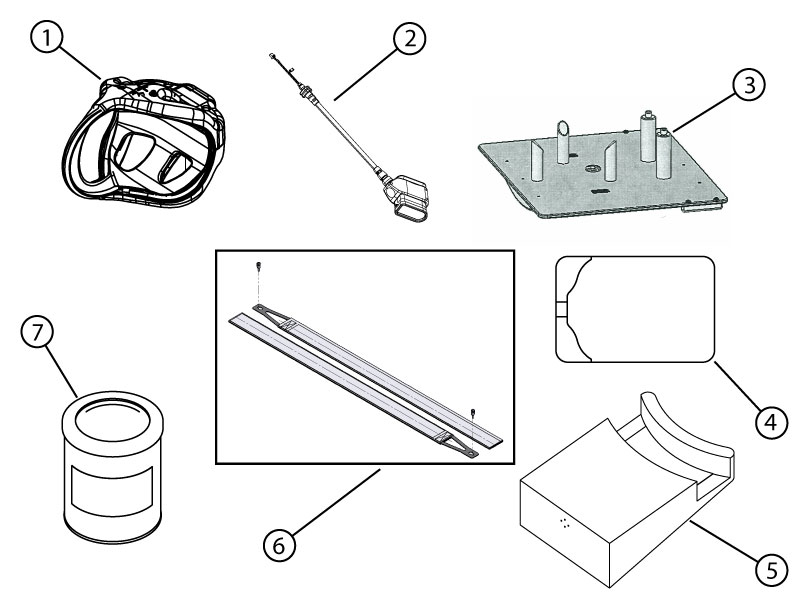

Figure 1. 3-channel shoulder coil
Table 1. 3-channel shoulder coil
ItemPart numberDescription
154989243-Channel Shoulder Coil FRU
255546823-Channel Shoulder Coil Cable FRU
32375136-33-Channel Shoulder Coil Phantom Positioner
42375136-53-Channel Shoulder Coil Patient Comfort Pad
524138273-Channel Shoulder Coil Spacer Pad FRU
653701093-Channel Shoulder Coil Strap and Pin
75440960Vinyl and Foam Repair Kit
