Adaptive Image Receive (AIR) MP large coil introduction

The performance of any modifications and/or repairs that have not been evaluated and approved by GEHC Coils Engineering may cause the device to be adulterated within the meaning of section 501(h) of the Food, Drug and Cosmetic Act, 21 U.S.C. § 351(h) and is strictly prohibited.

Specifically, unapproved modifications may impact the safety claims of the device pertaining to the patient/user in relation to shock, biocompatibility, flammability, biological, and thermal regulations. Any changes to materials outside of those within the products service documentation may be considered adulterated and can be in violation of good manufacturing practice requirements.

Product identification and shipping list

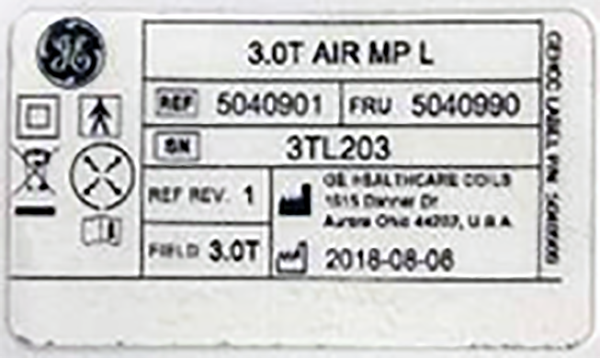

Figure 1. 3.0T AIR MP large coil rating label

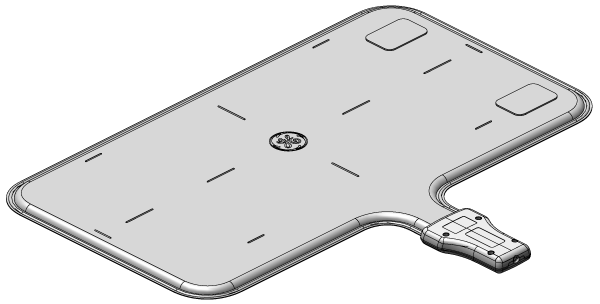

Figure 2. 3.0T AIR MP large coil
Table 1. 3.0T AIR MP large part numbers
DescriptionPart numberQuantity
3.0T AIR MP Large50409011
Table 2. AIR MP coils accessory kit - 5791670 (G7006YH)
DescriptionPart numberQuantity
AIR Coils Knee Positioner57916041
AIR Coils Foot Ankle Positioner57916061
Leg Support Comfort Pad58070841
Single Knee Wedge Pad58087061
Strap Assembly, AIR MSK Coils58070932

Environmental requirments

Storage requirements: All coils should be stored in the scan room.

  • Dimensions as stored lying flat, without cable: 74.0cm wide x 60.1cm long x 2.5cm high (29.1in wide x 23.7in long x 1.0in high)
  • Weight: 2.3kg (5.0 lb.)
