Side cover removal and installation

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	5 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Cut-Resistant Gloves	1 Pair	-	-
Nonmagnetic Titanium Service Tool Kit, Large Set	1	5112581	-

Table 1. Safety

DANGER

Strong Magnetic Field!

Ferrous materials can become dangerous projectiles in the presence of the magnetic field Produced by the Magnet.

Do not Bring any ferromagnetic tools or equipment into the magnet room.

Topic ID: id_SL1970092-1060805

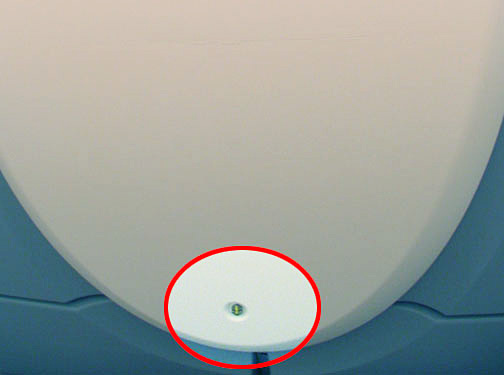

Loosen the large screw on lower portion of the lower side cover by using a non-ferrous allen key and turning the screw counter-clockwise Figure 1.

Figure 1. Side cover screw
Grab sides of lower cover and lift upwards until the cover is released from the upper cover. Set lower cover aside Figure 2.

Figure 2. Removing left side cover

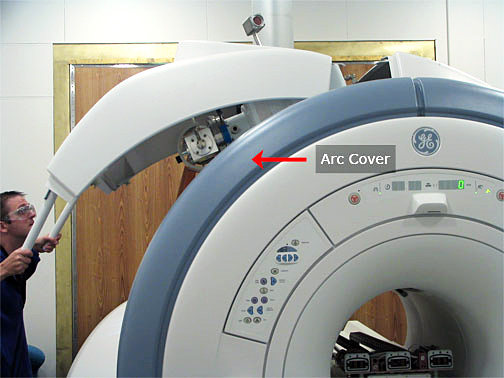

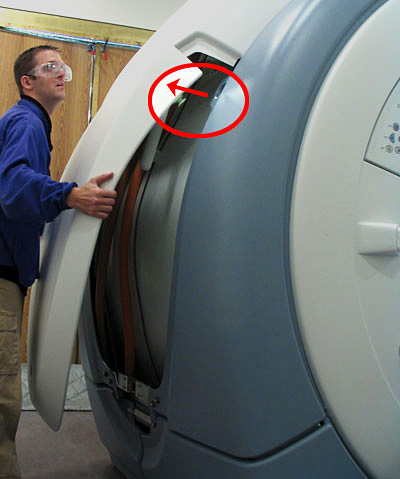

The upper cover is secured to the arc covers primarily by two round feet on the lower portion of the side cover. To remove the cover, grab the two handles on the upper cover firmly and push the cover up and then pull out away from the enclosure. This should release the cover’s feet and allow you to move it freely (see Figure 4).

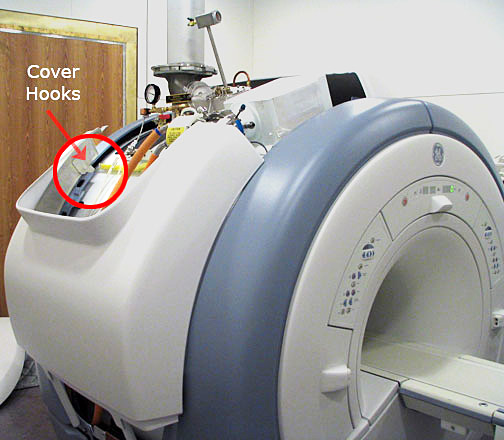

Once the feet are released, use the arc cover as a guide rail, and allow the cover to slide down the side of the enclosure. Once the cover clears the fixtures on the upper portion of the magnet, the cover can either be safely set aside or it can be rested on the side of the magnet using the cover’s hooks that latch on to the arc covers Figure 3.

Figure 3. Resting Top Cover on Side of Magnet

Topic ID: id_SL1970097-1060805

Note: To replace the left side covers, the top right side cover must be installed.
Using the arc covers as guide rails, slide the side cover up to meet the right side cover at the top of the magnet Figure 4.

Figure 4. Using the arc covers as guide rails

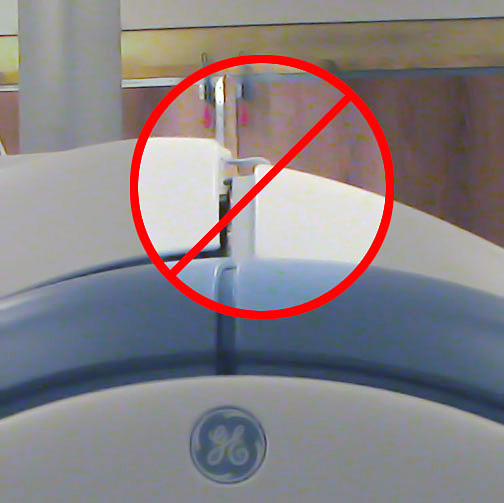

Hold the handles away from the enclosure to ensure that the alignment tabs get properly slotted under the right side’s slot Figure 5.

Figure 5. Slide alignment tabs below right side cover

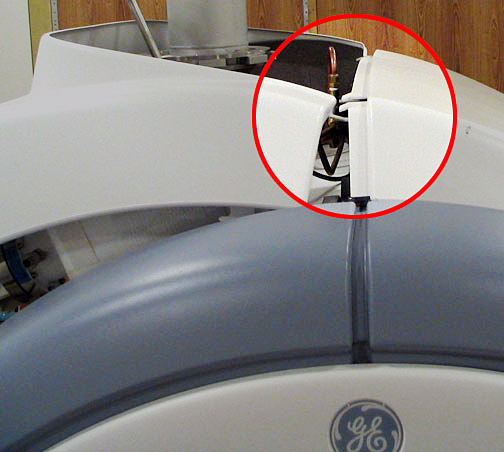

Note: This is not easily accomplished since you cannot see all the alignment tabs while holding on to the cover’s handles. Before proceeding to install the lower side cover, go over to the front and rear of the magnet and visually verify that the alignment tabs have been properly inserted and are not protruding over the top of the right side cover Figure 6

Figure 6. Ensure tab is properly placed

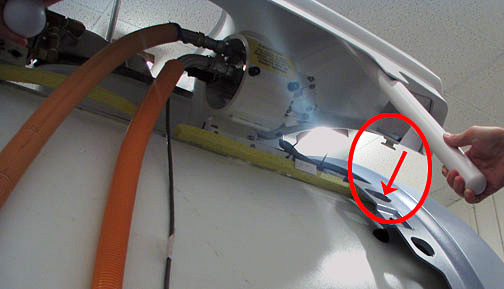

Set the round foot on the magnet side of the cover into the upper oval slots on the arc cover Figure 7. Snap into place.

Figure 7. Place round foot in arc cover's oval hole
Hold the sides of the Lower Cover and align the round feet on the magnet side of the Lower Cover with the arc cover’s oval slots Figure 8. Snap into place.

Figure 8. Installing left side cover
Latch the cover into place by turning the screw clockwise so the latch is secure Figure 9.

Figure 9. Side cover screw

Topic ID: id_14999832

No finalization steps.
