• Discovery MR750 3.0T System Service Methods
  • 5690009-2EN Revision 4
  • Object ID: 00000018WIA309A5110GYZ
  • Topic ID: id_2003835 Version: 4.0
  • Date: Jul 17, 2019 6:10:48 PM

Installing BrainWave software

Load the BrainWave application when installing third-party software.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-15 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
BrainWave software DVD1--

About this task

BrainWave should always be installed when loading third-party software.

Procedure

  1. Go to the Guided Install > Verfication tab.

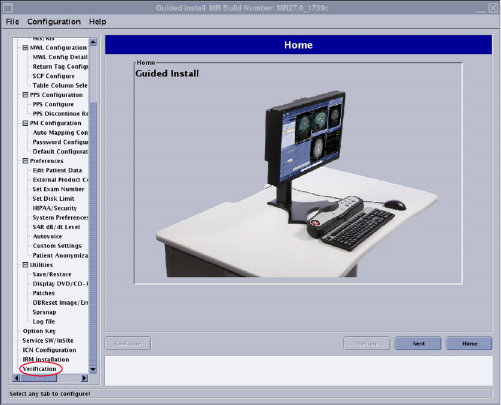

    Figure 1. Guided install UI
  2. Insert the BrainWave software DVD. Wait until the blinking LED goes off.
  3. Click Install Software.

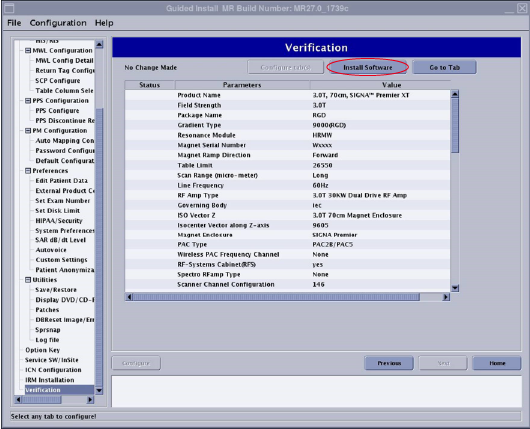

    Figure 2. Guided install UI - install software
  4. Reboot the system.
