3.0T HD 8-Channel NV Coil FRUs and Replacements

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable30 minutesNot Applicable
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Standard Tool Kit1---
Table 3. Replacement parts
ItemQuantityEffectivityPart numberManufacturer
GE 3.0T HD 8CH NV System Cable 1-

2414385

-
Anterior Chest Coil, GE 3.0T HD 8CH NV System Anterior Chest Assembly with Cable1-

2414386

-

About this task

Follow this process to replace the cable assembly on the 3.0T HD 8CH NV Coil by GE/USAI. This document also contains the field replaceable units (FRUs) and other accessories for the 3.0T HD 8CH NV Coil Field Replaceable Units and Other Accessories.

Topic ID: id_SL1959851-1060807

Replace The Coil Cable

Procedure

  1. Remove the posterior coil base cover.
  2. Remove the two screws that hold down the cable clamp assembly.
  3. Disconnect SMB plugs and the DC plugs on the coil cable end from the coil interface and DC control boards.
  4. Cut the cable tie, which secures the coil ID assembly, and then remove the coil ID assembly.
  5. Remove the old cable assembly.
  6. Fix a new coil cable assembly on the coil and reattach the cable clamp with the two screws.
  7. Connect all eight SMB plugs, DC plugs and coil ID to the corresponding receptacles on the interface and DC control boards Figure 1.

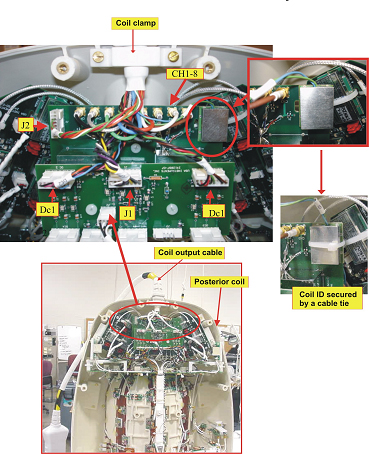

    Figure 1. Posterior Coil and Output Cable Assemblies
  8. Secure the coil ID with a cable tie.
  9. Close the posterior coil base cover.
Topic ID: id_SL1959861-1060807

Replace The Anterior Chest Coil Assembly

Procedure

  1. Remove anterior head coil cover.
  2. Remove the two screws that hold down the UDO connector assembly.
  3. Remove the old anterior chest coil assembly.
  4. Fix a new anterior chest coil assembly onto the anterior head coil by securing the UDO connector assembly onto the anterior head housing with the two screws Figure 3.
    Note:

    The chest connector must be oriented so that the black coax of the transition cable is next to the latch of the coil Figure 2.

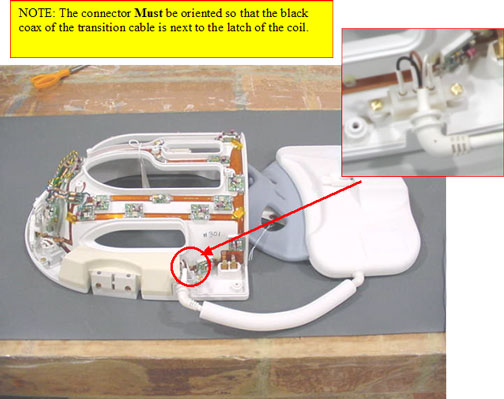

    Figure 2. Chest Connector Orientation

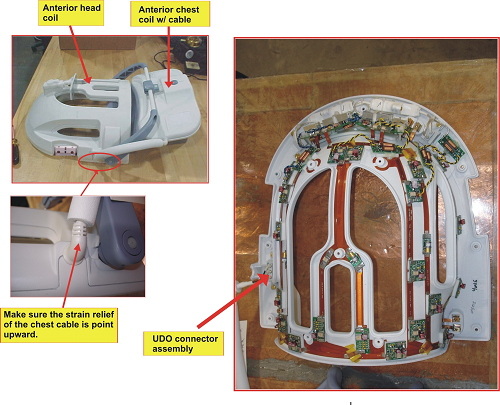

    Figure 3. Anterior Head and Chest Coil Assemblies
  5. Close the anterior head coil cover.
Topic ID: id_SL1959870-1060807

Field Replaceable Units and Other Accessories

Procedure

  1. Refer to Table 4 for the 3.0T HD 8CH NV Coil FRUs.
    Table 4. Field Replaceable Units
    Description GE Part #
    FRU, 3.0T E3 8NV Cable and Connector2414385
    FRU, 3T E2 8NV Coil Anterior Chest with Chest Cable2414386
    FRU, Phantom Set, 3T 8NV Coil2414389
    FRU, GE 3.0T HD 8-Channel NV Coil, No Cable2414383
    FRU, 3.0T E2 8NV Cable and Connector2414391
    3.0T Head TLT Spherical Phantom2359877
    3.0T 10cm spherical Phantom2360034
    Large Cylindrical Unified Phantom5342679-2
    Unified Phantom Positioner5344806
  2. Refer to Table 5 for 3.0T HD 8CH NV Coil's additional accessories.
    Table 5. Additional Accessories
    Description GE Part #
    FRU, Pad Set, 3T 8NV Coil2414388
Topic ID: id_14930957

Finalization

Finalization

No finalization steps.
