3.0T HD 8-Channel Cardiac Coil FRUs

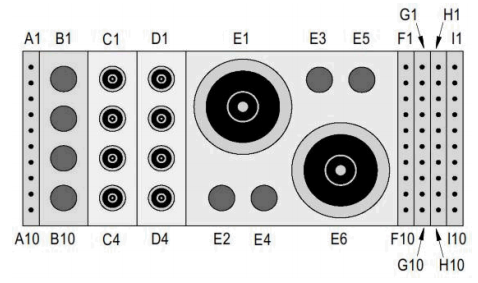

Cable Pin Mapping
| Channel | Connector Pin | Coil FRU PN | FRU Description | System Cable FRU |
|---|---|---|---|---|
| 1 | C1 | 2414705 or 5498918(RoHS) | Anterior Coil FRU (non-RoHS) or Anterior Coil FRU (RoHS) | 2414707 |
| 2 | C2 | |||
| 3 | C3 | |||
| 4 | C4 | |||
| 5 | D1 | 2414706 | Posterior Coil FRU | |
| 6 | D2 | |||
| 7 | D3 | |||
| 8 | D4 |
| Item | Part number | Description |
|---|---|---|
| 2414705 | Anterior Coil FRU (non-RoHS) | |
| 5498918 | Anterior Coil FRU (RoHS) | |
| 2414706 | Posterior Coil FRU | |
| 2414707 | System Cable FRU | |
| 2414708 | Phantom Positioner Kit FRU | |
| 5343347-2 | TL Unified Phantom (for 3.0T) |
