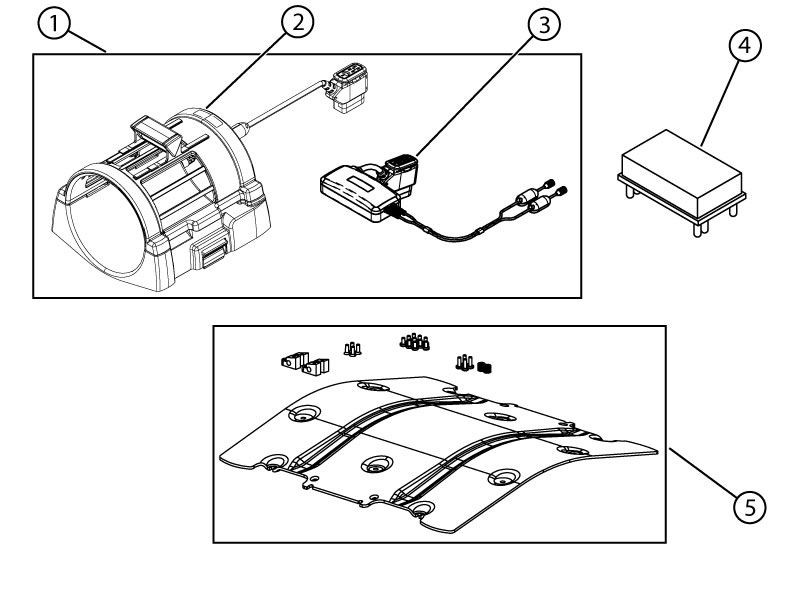

3.0T split-top head coil FRUs
| Item | Part number | Description |
|---|---|---|
| 1 | 5436083 | Head Coil and QHTR FRU |
| 2 | 5450630 | 3.0T Split-Top Head Coil FRU Note: For coil revision 12 and later. |
| 3 | 5437386 | QHTR Interface Assembly Note: For coil revision 12 and later. |
| 4 | 5433509 | Head Coil Preamp FRU Kit Note: For coil revision 7 and later. |
| 5 | 5191687 | Head Coil Latching FRU kit |
| 2355094 | Spring Contacts Replacement Kit | |
| 2352202 | Head Restraint Straps Kit | |
| 2145391 | P9364FC Mirror | |
| 5269301 | 3.0T Head Coil Cable Assembly FRU Kit, HDv (for coil Rev 1 through Rev 11 only) | |
| 5366299 | 3.0T Head Coil TR PCB Assembly FRU Kit, HDv (for coil Rev 7 through Rev 11 only) |
