HD 8-Channel CTL Coil Introduction

Overview

This document describes the 3.0T HD 8-Channel CTL Coil, catalog M3335LM.

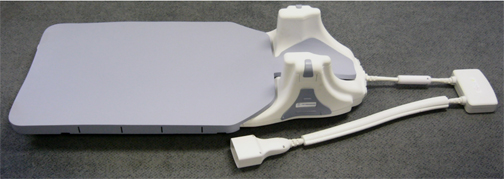

To identify the 3.0T HD 8-Channel CTL Coil, refer to the coil label (see the following illustrations).

Table 1. Shipping List
Box #	Description	GE Part #	Qty
1	HD 8-Channel CTL Array - A/B Port Coil w/ Cable	2415542	1
1	Operators Guide	2417403	1
1	Patient Comfort Pad	2413401	1
1	Ear Pads	2414423	2
1	Disposable Ear Pad covers	U1-150536	500

Storage Requirements

Store the coil in an air-conditioned scan room or equipment room.

To store the coil, a storage space exceeding the coil dimensions of 44.7” L x 18.5” W x 9.3” H is required.

Dimensions

44.7” L X 18.5” W X 9.3” H (113.5 cm L X 47.0 cm W X 23.5 cm H)

Weight

20 lbs (9.09 Kg)
