3.0T 8-Channel NV Coil Introduction

Product Identification and Shipping List

To identify the 3.0T Neurovascular (NV) Coil, see the coil labels shown below.

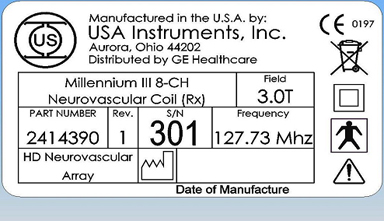

Figure 1. USA Instruments Coil Label

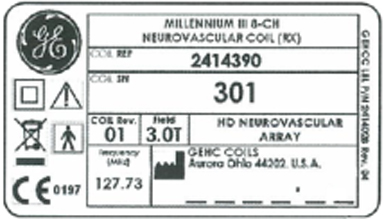

Figure 2. GE Coil Label

The 3.0T NV Coil is pictured below.

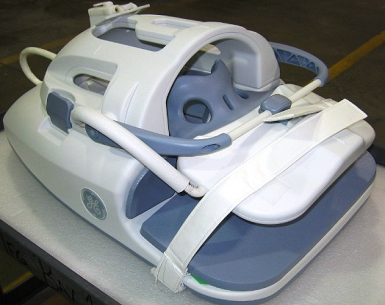

Figure 3. 3.0T NV Coil
Table 1. Shipping List
Component Item Description Quantity
2412912Neurovascular Array Coil, 3.0T, Excite III1
2413917Main Pad1
2413919Left Shoulder Pad1
2413920Right Shoulder Pad1
2412827Operators Guide1
5344806Phantom Positioner NV1

Related Documentation

Operator’s Guide, GE P/N 2412827

Environmental Requirements

Storage Requirements

Coil should be stored in the Scanner Room.

Dimensions

27.5” L x 18.5” W x 14.0” H (69.85 cm x 47.00 cm x 35.56 cm)

Weight

25 lbs. (11.36kg)
