• Discovery MR750w and SIGNA™ Architect T 3.0T System Service Methods
  • 5690002-2EN Revision 4
  • Object ID: 00000018WIA303A6240GYZ
  • Topic ID: id_2013129 Version: 6.3
  • Date: Dec 13, 2021 5:53:38 PM

Changing Boot mode

Change the Boot mode from Legacy to UEFI when reloading the USB host system software.

Procedure

Visually inspect the top of the Preparing One-Time Boot or Please select boot device menu.
  1. (For Dell T5810) Locate the phrase Boot mode is set to:.
    1. If the Boot mode is set to Legacy, use the up and down arrows on the keyboard to select BIOS Setup, listed under OTHER OPTIONS.

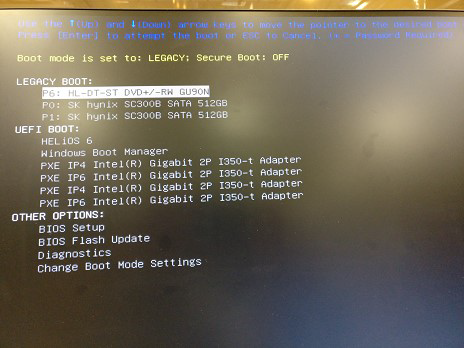

      Figure 1. Boot mode
    2. Press Enter.
    3. Under Settings in the left side of the window, select General > Boot Sequence.
    4. Under Boot List Option in the right side of the window, select UEFI.

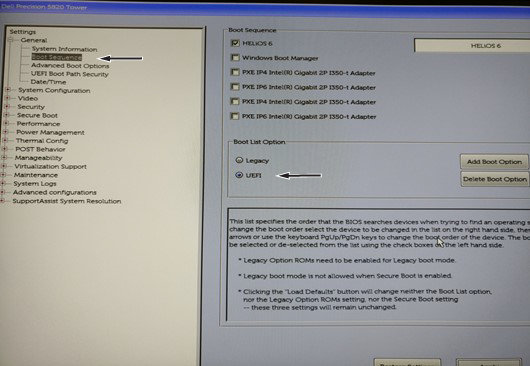

      Figure 2. Boot list option
    5. Click Apply and then Exit.
