• Discovery MR750w and SIGNA™ Architect T 3.0T System Service Methods
  • 5690002-2EN Revision 4
  • Object ID: 00000018WIA3057F630GYZ
  • Topic ID: id_2011916 Version: 7.1
  • Date: Jul 13, 2021 4:05:33 PM

3.0T GEM Head Neck Unit (HNU) FRUs

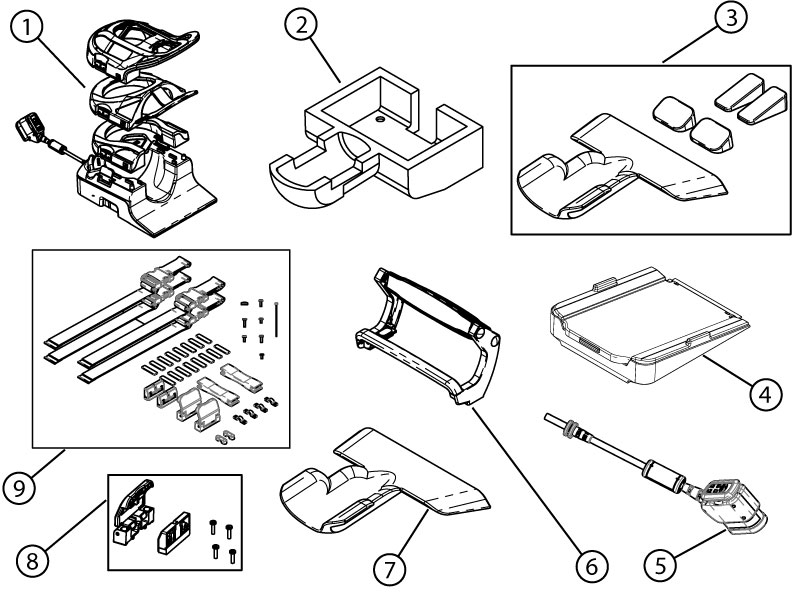

Figure 1. 3.0T GEM Head Neck Unit (HNU)
Table 1. 3.0T GEM HNU
ItemPart numberDescription
1 5443517

*For Silenz and QuietMR only.

3.0T GEM Quiet Head Neck Unit
25405750Head Neck Unit (HNU) Phantom Positioner
35417964Head Neck Unit (HNU) Pad Kit
45391451Head Neck Unit (HNU) Tilt
55459900Head Neck Unit (HNU) System Cable
65391440Head Neck Unit (HNU) Mirror
75473588Head Neck Unit (HNU) Head Pad
85793888Head Neck Unit (HNU) Latch Assembly
95408884GEM Coil Spare Parts Kit
