MNS

AMT 8kW MNS cabinet

Table 1. AMT 8kW MNS Cabinet
Item	Part Number	Description
1	2206456-28	8kW MNS RF Amplifier Cabinet with PMI Kit
2	2206456-24	Controller Module
3	2206456-7	RF Power Amplifier Fan (8)
4	2206456-8	Power Supply
5	2206456-2	RF Power Amplifier Preamp/Splitter (RF Power Amplifier - Top)
	2206456-3	RF Amplifier (RF Power Amplifier - Middle) (5)
	2206456-4	RF Power Amplifier Combiner/Coupler (RF Power Amplifier - Lower)
	2206456-5	RF Power Amplifier Coupler (RF Power Amplifier - Bottom)
	2206456-6	RF Power Amplifier Bias Tee (RF Power Amplifier - Bottom)
	2206456-13	Cable - Splitter to Amplifier (5)
	2206456-20	Internal Coupler-Bias Tee (RF Power Amplifier - Bottom)
	2206456-21	Internal Power Bias Tee (RF Power Amplifier - Bottom)
	2206456-22	Option 10, PMI Interface Kit
	2206456-23	Option 11, Head/Spectro Kit
	2206456-25	Option 12, ENI Coupler Tray Kit
	2354050 (non-RoHS)	3.0T 31P T/R Switch (available on site with customer)
	5409918 (RoHS)
	46-170021P29	5 Amplifier Fuses (3)

Table 2. MNS components
Item	Part Number	Description
1	5250032	8kW BB Amplifier Interface Board
	6250112	8kW BB Amplifier Interface Board (RoHS)
2	-	RF Detector 2 Board (see Table 3)
3	2329754	50 Ohm SMB Terminator
4	46-208990P1	50 Ohm Bulkhead Adaptor
5	5189655-2	MNS Upconvertor Module (Located in Rear Ped)
	5480090-2	MNS Upconvertor Module (Located in Rear Ped) (RoHS)
6	5271444	3T Cable Assembly MNS Adaptor

Table 3. RF Detector Boards
Cabinet Part Number	Description	RF Detector Board
5373012-7**	PGR Cabinet, MR750w, 32-Channel	5250034
5396502-7**	PGR Cabinet, MR750w, 32-Channel	5250034
5481500-7	PGR Cabinet, MR750w, 32-Channel	6250264
5741000	PGR Cabinet, MR750w (first used DV26)	6250264
5499460-7	PGR Cabinet, MR750w, 32-Channel	6250264
5499460-10	PGR Cabinet, MR750w, 32-Channel+	6250264
**NOTE: Older PGR cabinets may be upgraded to MR Silent (Quiet). If the system has the MR Silent upgrade, use the newer boards RFDB 6250264 and UPM Processor board 6250266.

Table 4. MNS exciter
Item	Part Number	Description
1	5300204-2	DVMR 3.0T MNS Exciter (for SRPS systems)
	5411413-2	MR750 3.0T MNS Exciter (for SRPS systems) (RoHS)
2	5483242-2	3.0T MNS Broadband Exciter (for eSRPS systems)
3	5600016-2	3.0T MNS Broadband Exciter (for eSRPS systems) (RoHS)

Table 5. DVMR MNS Cable Kit - Interconnects (5271929) or DVMR MNS Cable Kit - Interconnects (RoHS) (5492502) contains:
Item	Part Number	Description
1	5265483	MNS Giglink Cable
2	5169804-15	Run E1007, PGR-J200 to MNS-J5, MNS FWD-8kW Amplifier, 12,000 mm
3	5169804-16	Run E1008, PGR-J201 to MNS-J6, MNS FWD-8kW Amplifier, 12,000 mm
4	5169804-17	Run E1009, PGR-J202 to MNS-J7, MNS REF-8kW Amplifier, 12,000 mm
5	5169804-18	Run E1010, PGR-J203 to MNS-J8, MNS REF-8kW Amplifier, 12,000 mm
6	5169804-19	Run E1012, MNS-J2 to PEN-J4, MNS TR, Unblank-8kW Amplifier, 17,000 mm
7	5169804-31	Run M1309 PEN-J33 to PED-MNS-J1, MNS Loopback, 17,500 mm
8	5169227-4	Run E3010, MNS-J1 to PGR-J204, 12,000 mm, MNS RF Interface
9	5270425	MNS Amplifier BNC Cable
10	5265976	MNS Broadband Exciter Power Cable
11	5166749-8	Run M1308, PEN-J31 to PED-MNS-J3, MNS LO Option, 17,500 mm
12	5181464-2	MNS Cable, RF-SW1-TX-J120 to Pen Panel J124, 990.5 mm
13	5181464-3	Run M1353, MNS cable, Pen Panel J129 to RF-SW2-TX-J126, 990.5 mm
14	5179345	Run M3309, MAG-J15 to PEN-J80 and PEN-J84, MNS Option Y Cable, 300 mm
15	5173115-6	Run M1307, SPW-J125 to MAG-J12, MNS Transmit, 14,305 mm
16	5181541	Run M3356, PED-HUB-SLOT11-J11 to PED-MNS-J2, MNS Mixer Control
17	5191729-3	MNS 8w8 Cable
18	5271444	3T Cable Assembly MNS Adaptor
19	5310317	Run E0006, PGR-J205 to MNS-J12, MNS Cabinet Power, 5 Conductor Cable

Table 6. MNS Cable Kit with eSRPS (5263595-3) contains:
5166222-14	5166222-15	5166222-16	5166222-17	5271096	5172955-3
5271821	5265145	5262319	5419641-2	5266021	5165866-2

Table 7. MNS components
Item	Part Number	Description
1	2354050-6	3T 13C TR Switch (located on LPCA) (includes the following items)
	5409918-2	3T 13C TR Switch (located on LPCA) (RoHS) (includes the following items)
		2109880-2	Lock Washer, 4.1 mm x 7.6 mm (6)
		2109873-15	Pan Head Screw, M4 x 12 mm (6)
		2109878-2	Plain Washer, 4.3 mm x 9 mm (6)
2	5114799-2	3T 13C MNS Preamplifier
3	2379500	2kW MNS QD Box with One BNC
	5494570	2kW MNS QD Box with One BNC (RoHS)
	2379500-2	2kW MNS QD Box with Two BNC
4	5114403-3	MNS QA Probe 3T 13C 32.125 MHz
	5495446-2	MNS QA Probe 3T 13C 32.117 MHz (RoHS)
5	5114403-4	MNS QA Probe 3T 31P 51.752 MHz
	5495446	MNS QA Probe 3T 31P 51.703 MHz (RoHS)
6	5114978-4	MNS QA Sample Vial 3.0T 31P
7	5114978-3	MNS QA Sample Vial 3.0T 13C
8	5116212	MNS QD Box Kit (includes the following items)
		2359525*	3T MNS QD Box Linear Coils
		5494569*	3T MNS QD Box Linear Coils (RoHS)
		2359525-2*	3T MNS QD Box Quadrature Coils
		5494569-2*	3T MNS QD Box Quadrature Coils (RoHS)
		2379500-2*	2kW MNS QD Box with Two BNC
9	5728182-17	IO J200 to ASC Slot 13 J4, MNS FWD1, 1,750 mm
10	5728182-18	IO J201 to ASC Slot 13 J5, MNS REF1, 1,750 mm
11	5728182-19	IO J202 to ASC Slot 10 J4, MNS FWD2, 1,750 mm
12	5728182-20	IO J203 to ASC Slot 10 J5, MNS RFL2, 1,750 mm
*Item not sold as individual FRU

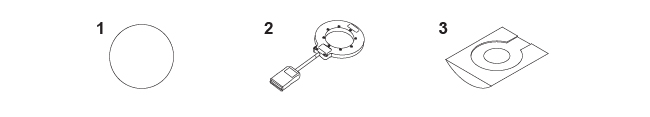

Table 8. MNS phantom/service coil
Item	Part Number	Description
1	2152220	MRS Phantom without the Loader
2	2386800	G3 31P MNS Service Coil
3	2389665	MNS Phantom Positioner

Table 9. CPC 8kW MNS Cabinet
Item	Part Number	Description
1	5411744-8	DV Combiner FRU Collector
2	5411744-6	DV Power Amplifier FRU Collector
3	5411744-7	DV Driver Amplifier FRU Collector
4	5411744-9	DV Master Power Supply FRU Collector
5	5411744-16	EMI Shield 6-Inch Fan Guard
6	5411744-18	Gasket EMI, D-Shape, Adhesive
	5411744-19	Gasket EMI, Finger, Adhesive
	5411744-20	Gasket EMI, D-Shape, Adhesive
7	5411744-21	System Coax Cables, MOD 3T8000MG
8	5411744-22	System Data Cables, MOD 3T8000MG
