VRE Reconfiguration

Prerequisites

VRE Reconfiguration reinstalls the software onto the ICN. This procedure is needed after an ICN replacement. It may also be used when troubleshooting issues with the VRE system.

Procedure

  1. On the Tools screen, select the Service Desktop Manager tab

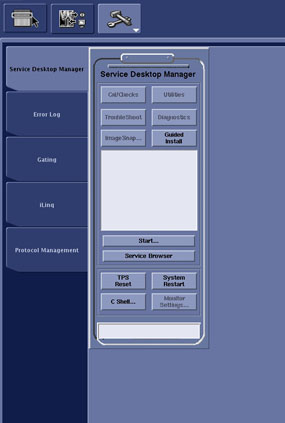

    Figure 1. Service Desktop Manager on Tools Screen

  2. Select "Configure VRE" and click on [Configure VRE Blades].

    Figure 2. VRE Configuration

Finalization

  1. Perform a test scan to ensure the system is working properly.
