Top FAN Assy

Prerequisites

Procedure

  1. Remove Top Finished Plates.

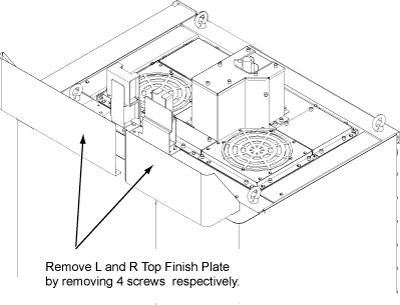

    Figure 1. Top Finished Plates

  2. Remove T4 cover by removing 4 screws.

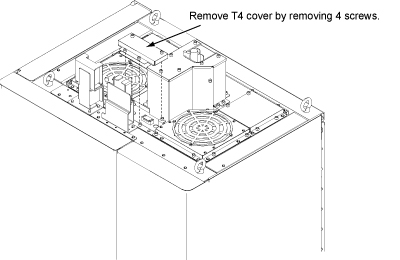

    Figure 2. T4 cover

  3. Disconnect FAN Power cables from T4.

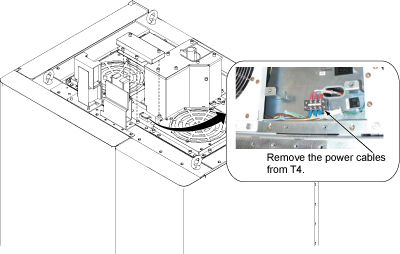

    Figure 3. Cables on T4.

  4. Remove Right and Left FAN Assy.

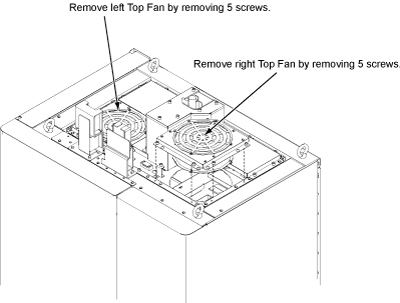

    Figure 4. FAN Assy Removal

  5. Restore the new FAN Assy by reverse order of removal. Connect power cables to T4 according to the label on each cable.
