TR Dynamic Disable Calibration

Prerequisites

This calibration should be run on:

  • System installation

  • T/R DD Board replacement

  • Body Coil replacement

  • Body Hybrid replacement

  • Replacement of cabling between any of the above.

Procedure

  1. From the Common Service Desktop, select Calibration.

    • If in Install, click on [Install and Calibration Wizard] ⇒ Click here to start this tool.

    • If in Maintenance Mode, click on [Calibration Wizard] ⇒ Click here to start this tool.

    • If a Service Key does not exist, click T/R Dynamic Disable Open Limit Calibration.

  2. Click Run to start the calibration procedure. The calibration will complete with results given in the Test Results text area.

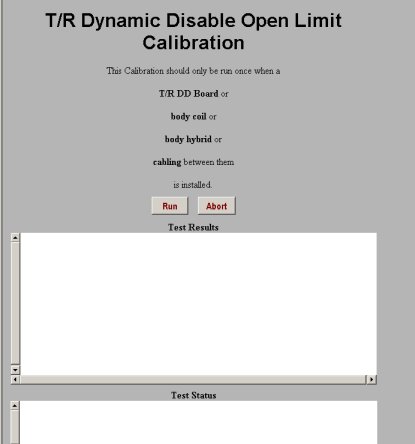

    Figure 1. T/R Dynamic Disable Open Limit Calibration

  3. Perform a TPS Reset for changes to take effect.

Finalization

No finalization steps.
