Skirt Cover Removal

Prerequisites

1 Front Right and Left Skirt Covers

Procedure

  1. Undock patient table, and position table away from the magnet.
  2. Remove a bolt from front side of front right skirt cover.
  3. Slide and remove front right skirt cover to the magnet front side.
    note:

    The illustration is front right skirt cover. The front left skirt cover is similar to front right skirt cover.

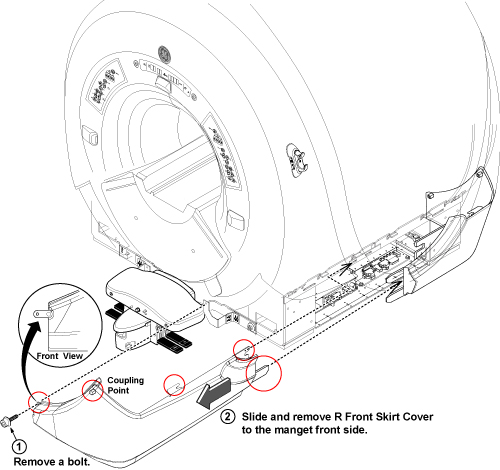

    Figure 1. Front Skirt Cover Removal

  4. Installation is reverse order of removal.

2 Rear Right and Left Skirt Cover

Procedure

  1. Remove rear pedestal covers. Refer to Rear Pedestal Cover.
  2. Slide and remove rear right skirt cover to the magnet rear side.
    note:

    The illustration is rear right skirt cover. The rear left skirt cover is similar to rear right skirt cover.

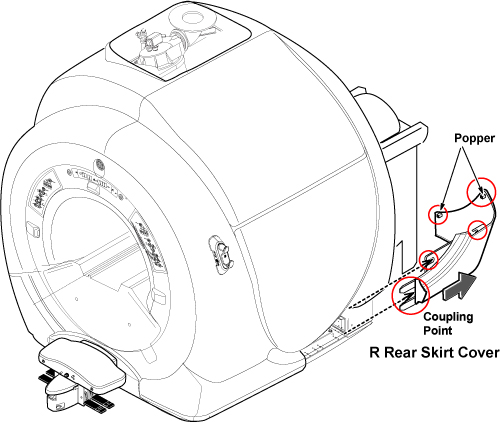

    Figure 2. Rear Skirt Cover Removal

  3. Installation is reverse order of removal.

3 Finalization

Finalization

No finalization steps.
