SCISSOR COVERS
Prerequisites
1 Disassembly of SCISSOR COVERS
Procedure
- Loosen all 14 screws of the Top cover-using screwdriver as shown
in Figure 1 and Figure 2 . After Loosening, hold the cover in one hand and remove all the
screws with the other hand.
Figure 1. Remove screws for top cover

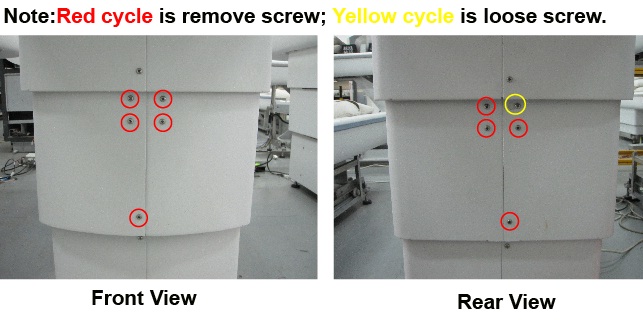

Figure 2. Remove screws for top cover
- Loosen all 10 screws of the middle cover-using screwdriver as
shown in Figure 3 . After Loosening, hold the cover in one hand and remove 9 screws
with the other hand.

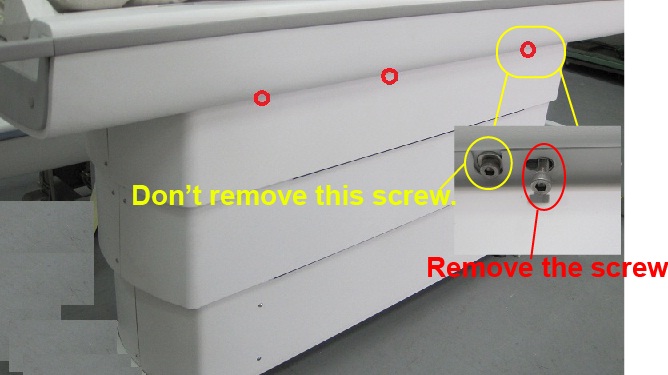

Figure 3. Remove middle cover
- Loosen all 12 screws of the middle cover-using screwdriver as
shown in Figure 4 . After Loosening, hold the cover in one hand and remove all 12
screws with the other hand.

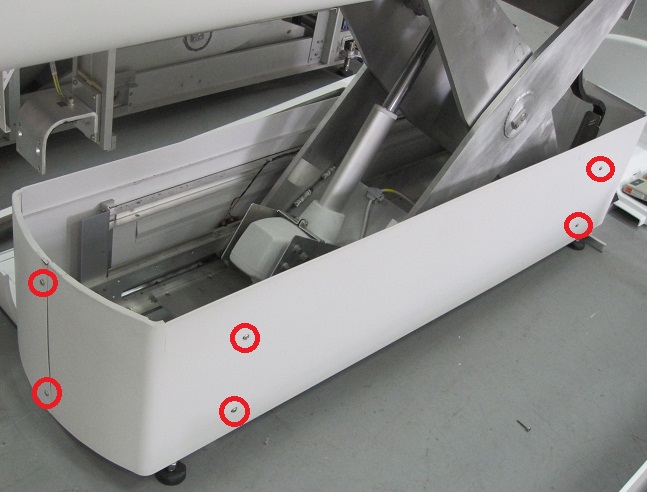

Figure 4. Remove inner cover
2 Assembly of SCISSOR COVERS
Procedure
- Assembly the Scissor Covers by the reverse order of disassembly.
- Tighten all the screws using the screw drive around the Cover.
Maintain uniform gap between covers while tightening front and back
end of the Table.

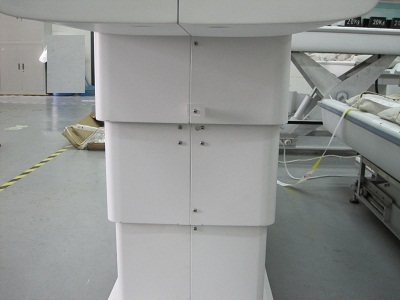

Figure 5. Tighten all the screws
3 What to do next
Finalization
No finalization steps.
