Rear Trim Ring

Prerequisites

Table 2. Safety

danger

Strong Magnetic Field!
Ferrous materials can become dangerous projectiles in the presence of the magnetic field Produced by the Signa Magnet.
Do not Bring any ferromagnetic tools or equipment into the magnet room.

Procedure

Remove the rear trim ring. The rear trim ring is fixed by 7 poppers to enclosure.

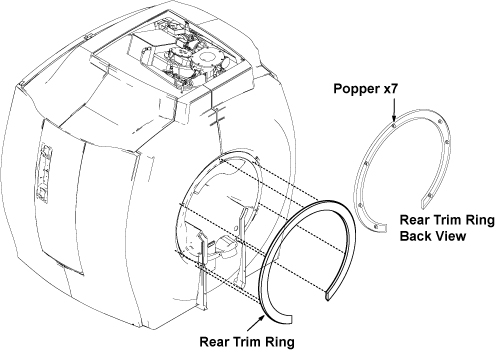

Figure 1. Rear Trim Ring Removal
Installation is reverse order of removal.

Finalization

No finalization steps.
