Rear End Bell Replacement

Prerequisites

Procedure

  1. Replace Rear End Bell
    note:

    After end bell is replaced, a good seal is required to prevent air leaks. Any air leaks between RF body coil and end bell can cause a loud humming noise during patient scanning. If possible, conduct an air leakage test prior to bridge installation. This requires connecting power to the blower box and connecting a 6-inch blower hose from the blower box to the bulkhead.

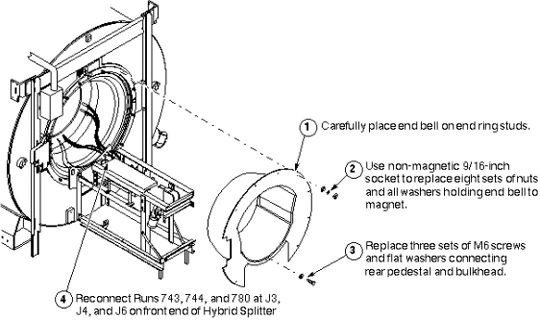

    Figure 1. REPLACE REAR END BELL

  2. Reconnect gradient leads.

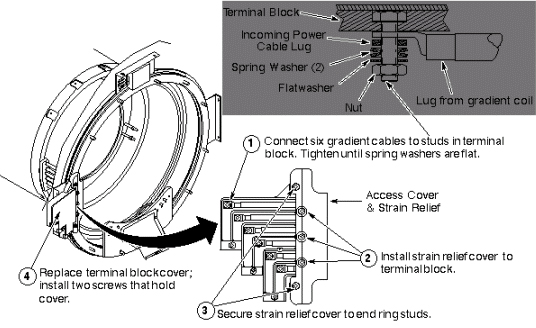

    Figure 2. RECONNECT GRADIENT LEADS

    note:

    Reconnecting six gradient leads - When replacing the six gradient cables from the coil on the terminal block, be sure that they go on the stud first, followed by the incoming power cables, washers, and nuts.

  3. Replace rear comfort items

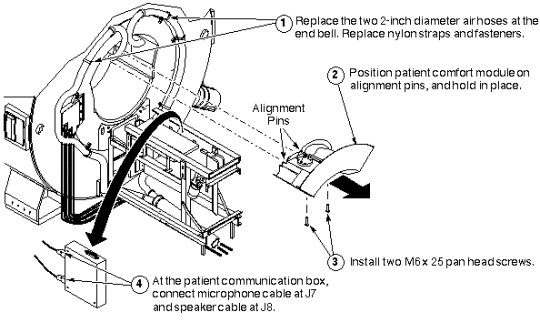

    Figure 3. REPLACE REAR COMFORT ITEMS

Finalization

No finalization steps.
