Laser Light Alignment

Prerequisites

Procedure

  1. Turn the laser lights on.
  2. Set the Head Coil so that the Axial beam hit at the end edge of the Head Coil. Verify that the Axial and Sagittal laser lights are properly aligned using the Head Coil as the reference. See Illustration Figure 1. If adjustments are needed, remove the upper display by carefully prying the cover off. See Figure 2. The Adjust Rods for both the Sagittal and Axial can be accessed.

    Figure 1. AXIAL AND SAGITTAL BEAM CHECK

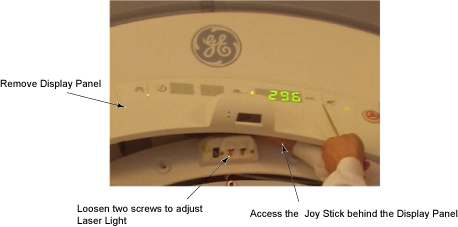

    Figure 2. AXIAL & SAGITTAL LIGHT ADJUSTMENT

Finalization

Perform DQA Test, refer to DQA Tool II
