LPCA Cover Removal

Prerequisites

Table 3. Safety

danger

STRONG MAGNETIC FIELD!
FERROUS MATERIALS CAN BECOME DANGEROUS PROJECTILES IN THE PRESENCE OF THE MAGNETIC FIELD PRODUCED BY THE SIGNA MAGNET.
Do not Bring any ferromagnetic tools or equipment into the magnet room.

Notice Image

warning

ELECTROCUTION HAZARD!
DANGEROUS VOLTAGES ARE PRESENT AROUND THE MAGNET SUBSYSTEM WHEN ENERGIZED.
LOCK AND TAG OUT POWER TO THE magnet room BEFORE STARTING WORK.

Procedure

Remove LPCA rear cover by removing 6 screws.
Remove 4 rubber caps.
Remove 4 screws from LPCA rear cover.
Move LPCA cover to the front to grab the center slot of the cover.
Remove LPCA cover as illustration.

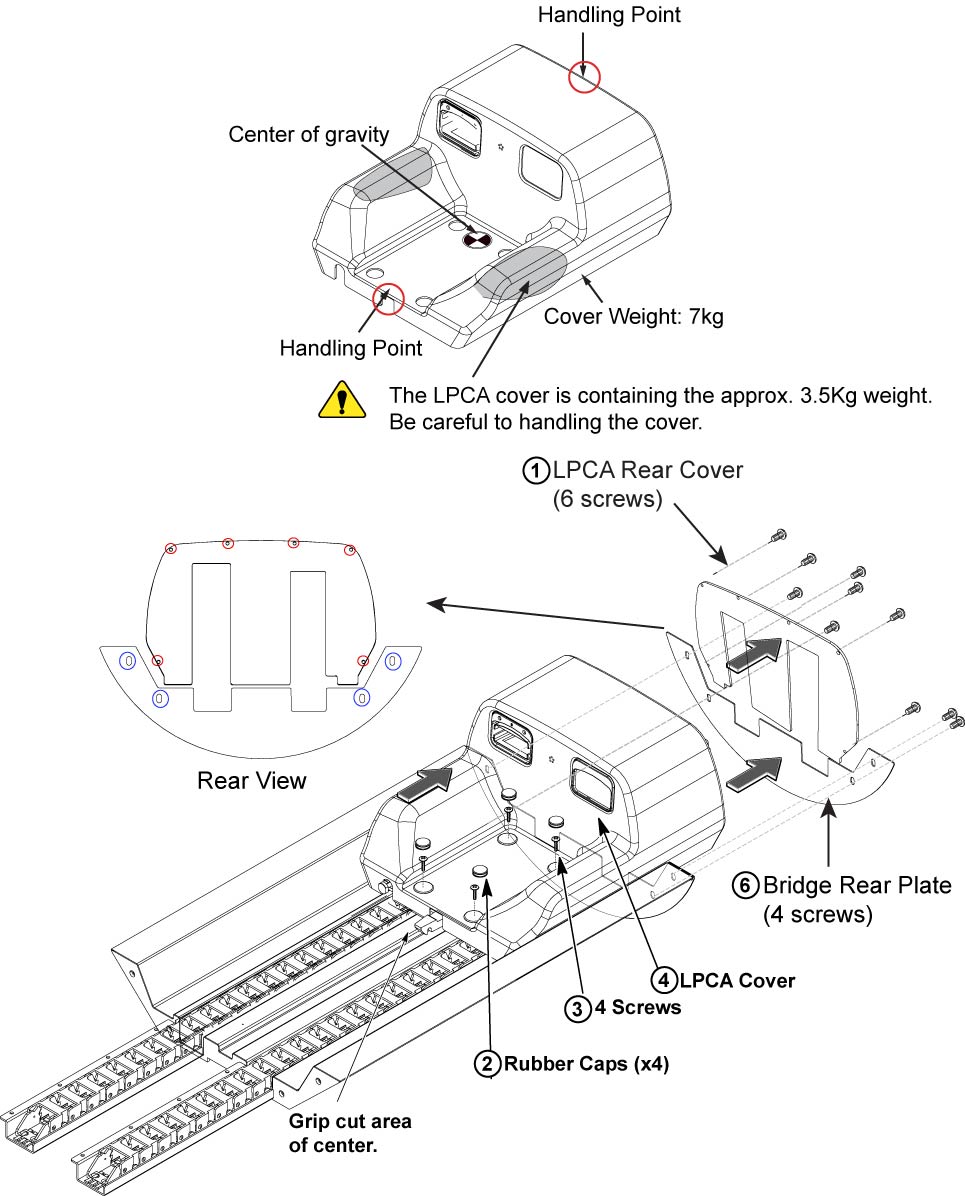

Figure 1. LPCA Cover

Finalization

After replacement is done, restore power.
