Hoist Setup

Prerequisites

Procedure

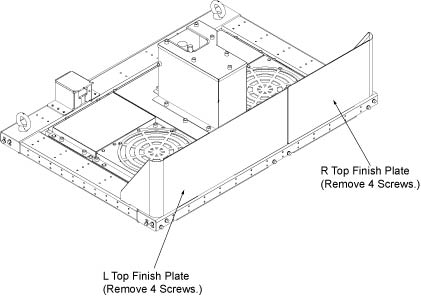

  1. Remove R and L Top Finish Plates.
  2. Remove L top cover by loosening 10 screws.

    Figure 1. Rear Hoist Base and L TOP Cover Removal

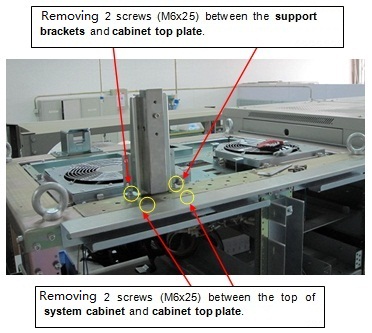

  3. Remove Support Bracket assembly on the top of the cabinet top plate of System Cabinet by removing 4 screws (M6x25).

    Figure 2. Remove Support Bracket assembly

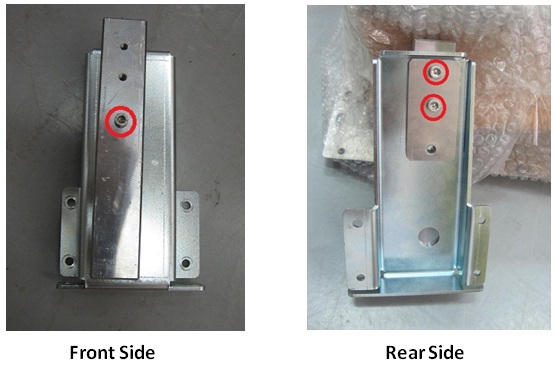

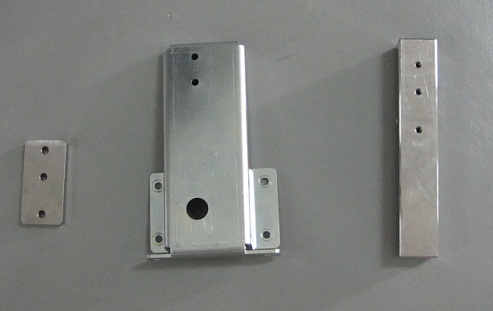

  4. Set up Hoist tool. De-assembly Support Brackets by removing 3 screws.

    Figure 3. De-assembly Support Brackets

    Figure 4. Remove 3 screws

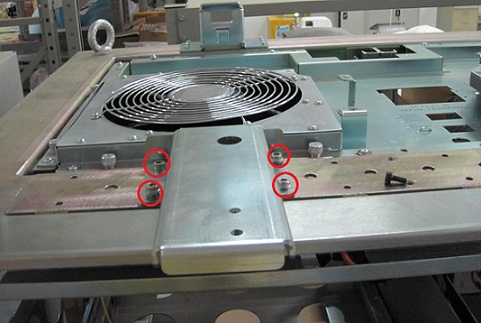

  5. Fix the bigger Bracket on the top of System Cabinet by fixing 4 screws.

    Figure 5. After Remove Support Bracket assembly

  6. Locate the three (3) large Steel Rail sections and place them on a flat surface for assembly.

    Figure 6. three large Steel Rail

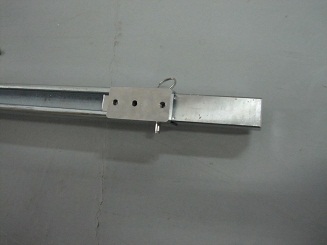

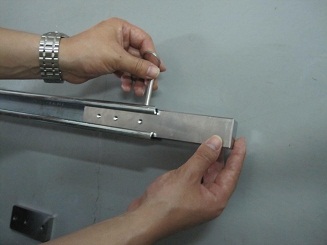

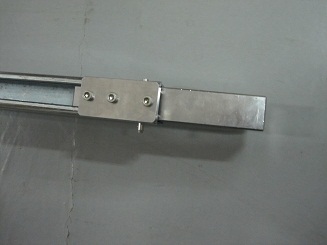

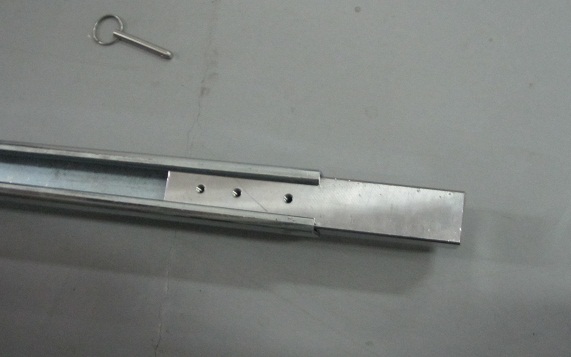

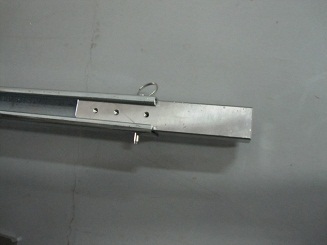

  7. Fix Rail and Brackets by fixing 3 screws
    note:

    Rail is depending on the type of Fixed Site Lift Tool Kit.

    Figure 7. Fix Rail and Brackets 1

    Figure 8. Fix Rail and Brackets 2

    Figure 9. Fix Rail and Brackets 3

    Figure 10. Fix Rail and Brackets 4

    Figure 11. Fix Rail and Brackets 5

    note:

    After fix 3 screws, please remove the rail. At this location, the rail is not mandatory.

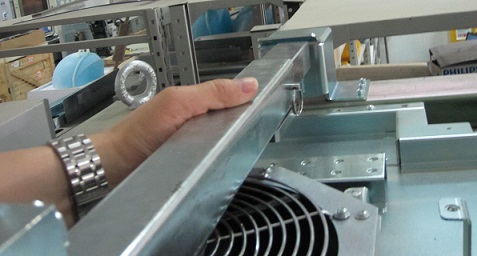

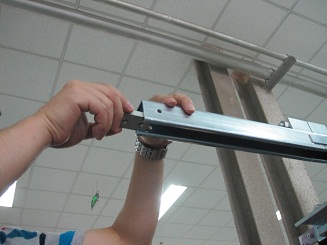

  8. Put large steel rail on the top of the System Cabinet and insert it bracket.

    Figure 12. three large Steel Rail

  9. Fixing another bracket and rail by 2 screws.

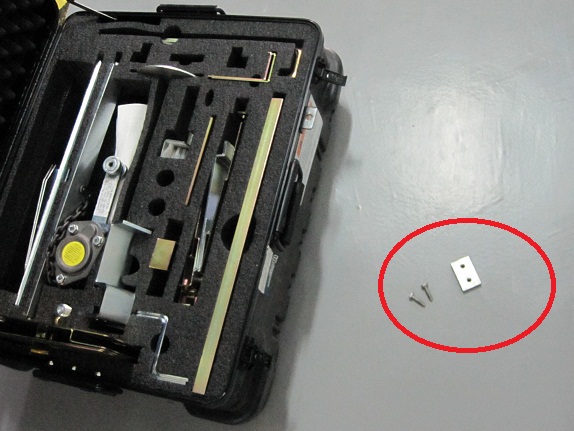

    Figure 13. Bracket from hosit tool

    Figure 14. Installation Bracket 1

    Figure 15. Installation Bracket 2

    note:

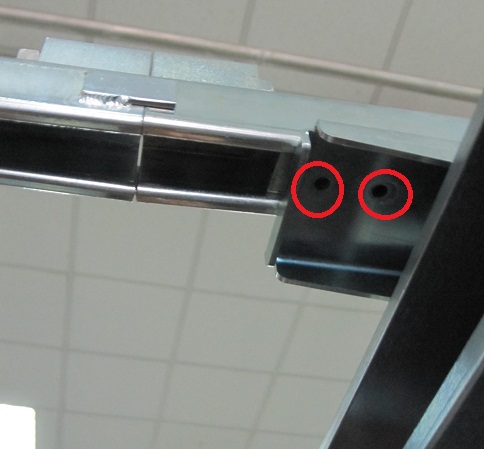

    Make sure that two yellow screws are tighten.

    Figure 16. Installation Bracket 3

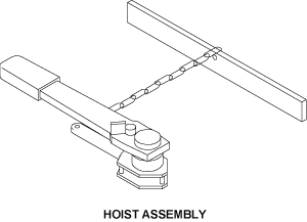

  10. Locate the hoist assembly in the lift kit.

    Figure 17. hoist assembly

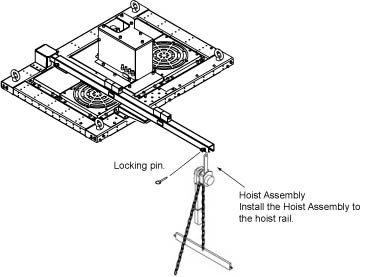

  11. Insert the hoist assembly into the front end of hoist rail, and then insert a locking pin into the hole of front rail. This locking pin prevents the hoist assembly from sliding out of the rail.

    Figure 18. Insert the hoist assembly and lock

Finalization

  1. After replacement is completed, restore it by reverse order.
