HUB Replacement

Prerequisites

Procedure

  1. Shutdown application software on the Host computer. Lockout/Tagout power sources. Refer to Lockout/Tagout of the Simple OC.
  2. Remove the right cover. Refer to Right Cover Removal
  3. Disconnect the power cable from the HUB.

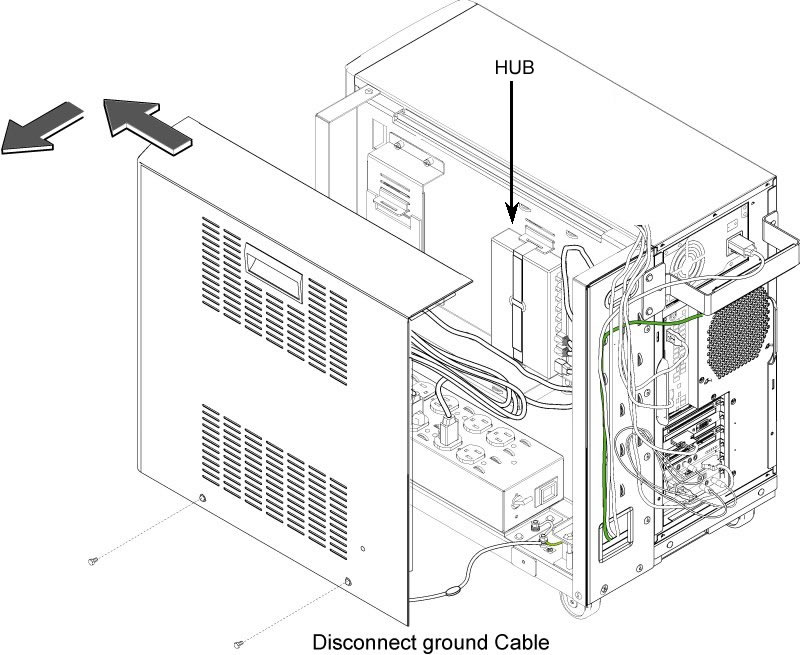

    Figure 1. HUB Replacement

  4. Remove all cables that are connected to the HUB.
  5. Remove the Velcro tapes from the HUB.
  6. Remove the HUB from the HUB support bracket of Simple OC.
  7. Restore Simple OC by reverse order of removal.

1 Finalization

Procedure

  1. Restore power to the Simple OC.
  2. Open C Shell and type as follows. Check that result of each ping test is ok.

    • ping agp [Enter]

    • ping scp [Enter]

    • ping vre [Enter]

  3. Perform Signal to Noise - Head Scan.
