HD 8CH CTL Cable Replacement

Prerequisites

Follow this process to replace the cable assembly on the 1.5T Signa HD 8CH CTL Coil by GE/USAI (M3335MA).

Procedure

  1. Lay the CTL coil on its side and remove the 19 screws holding the base cover on the unit as shown below: Figure 1. Don’t remove the center up screw as shown in the illustration below

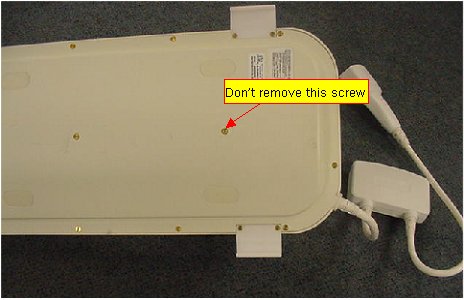

    Figure 1. CTL Coil Screw Removal Position

  2. Disconnect the RF cables and the DC wires from the multiplexer board, as shown below:

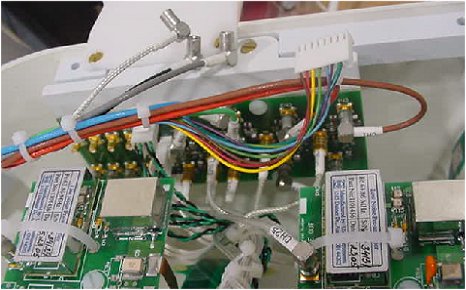

    Figure 2. RF cables and the DC wires

  3. Remove two screws on the clamp of strain relief as shown below:

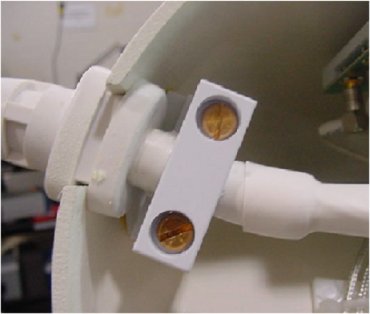

    Figure 3. Two screws on the clamp

  4. Remove the cable from the base of the coil.
  5. Insert the new cable to the coil.
  6. Connect the DC wires to the multiplexer board.
  7. Connect the corresponding RF cables to the multiplexer board (note: the cables are marked for proper placement).
  8. Place the clamp and tighten the two screws.
  9. Replace the bottom cover and the 19 retaining screws.

Finalization

No finalization steps.
