Grafidy - Conditions column

Displays a message summarizing the calibration state of the associated component.

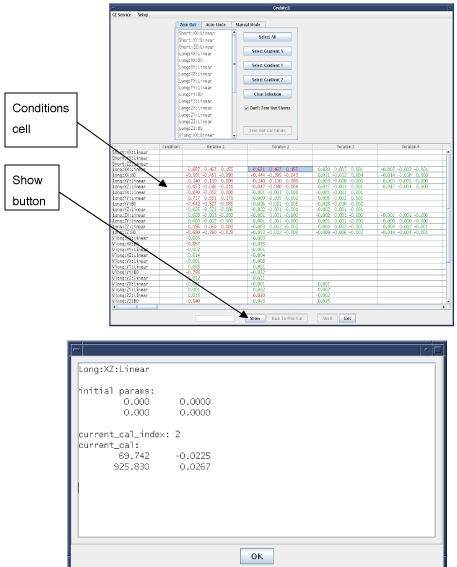

In the matrix summary view, there is column between the component label and first iteration labeled Conditions. If the Show button is chosen with one of these matrix cells selected, a message displays summarizing the initial and current calibration state of the associated component. Unlike the cells in the iteration columns, this information can be shown even if data has not yet been collected for the component.

The Condition message contains the following information:

`Mode:Axis:Type`	Initial Calibration Parameters	The values of the time constants and amplitudes for the associated component when Grafidy 3 was invoked.
`current_cal_index`	Current Calibration Index	The values for the iteration that generated the calibration parameters that are in the calibration file. 0 indicates that the values are the initial values. -1 indicated that the calibration values are zero. -2 indicates that the values are set to default (short mode only).
`current_cal`	Current Calibration Parameters	The values of time constants and amplitudes currently applied for the associated component.
