Front End Bell Removal

Prerequisites

Procedure

  1. Removing Front Patient Comfort

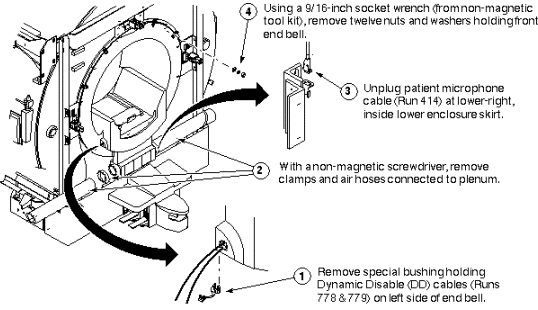

    Figure 1. REMOVE FRONT PATIENT COMFORT ITEMS

    note:

    Magnishield enclosures - At some sites with Magnishield enclosures, it may be necessary to also remove the docking mechanism and lower skirt to provide sufficient clearance for the coil cart.

  2. Removing Front Front End Bell

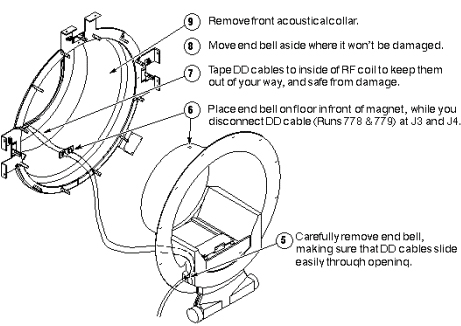

    Figure 2. REMOVE FRONT END BELL

Finalization

No finalization steps.
