Fixed Table Installation

Prerequisites

This procedure describes how to install Fixed Table.

note:

This procedure is for Fixed Table. For Low Height Fixed Table, refer to Low Height Fixed Table Installation.

Procedure

  1. Move the Table next to the dock structure.
  2. Fix the Table to the dock frame using four bolts.
    note:

    Align the Table and Dock Frame by adjusting the 4 wheels.

    note:

    Do not tighten the screws too tight now since Table adjustment will be performed later.

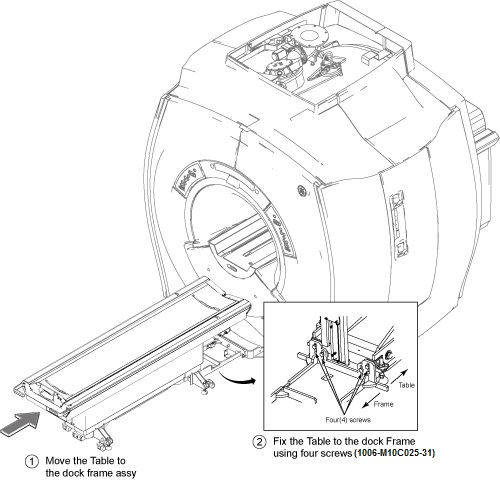

    Figure 1. Dock Mounting Support Installation

  3. Connect all cables.

    • Connect 6111111-J1 to 6111113-J1

    • Connect 6111112-J2 to 6111114-J2

    • Connect 6111112 - J2 to Table Control Box J3

    • Connect 6111111 - J2 to Table Control Box J4

    • Ground Cables (x2)

    • Connect RUN#M1509 (from Mega Switch J22) to Convert Board 3 (P6)

    • Connect RUN#M3511 (from Mega switch J17) to Convert Board 3 (P5)

    • Express Coil Cables (x2) to Convert Board 3 (P3 and P4)

    note:

    Make sure the following cables are already connected to Table Control Box.

    • RUN421 to Table Control Box J1

    • RUN#2009 (MG2-A29-J1) to Table Control Box J2

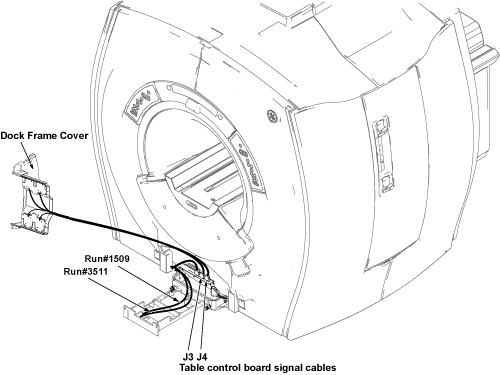

    Figure 2. Cable Wiring

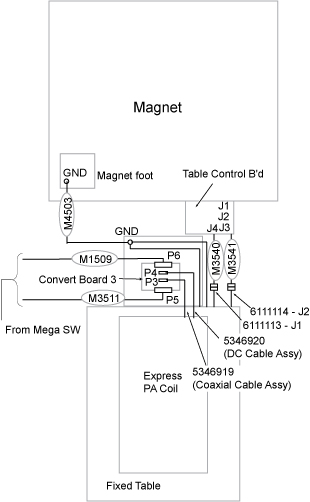

    Figure 3. Wiring Diagram

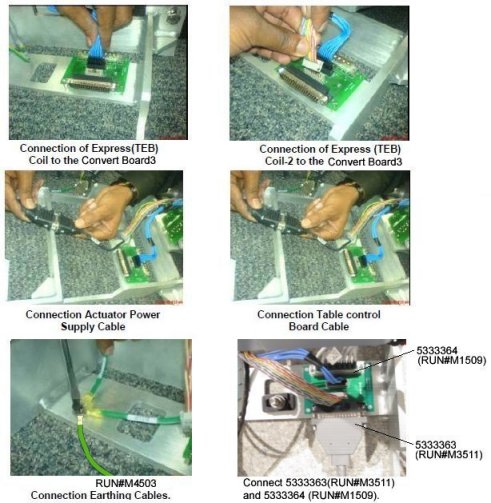

    Figure 4. Cable Wiring Detail

    note:

    Dock Frame Cover and Bottom cover will be installed after Table Adjustment.

Finalization

No finalization steps.
