Express Coil: Posterior Array Coil Identification Label Pasting Procedure

Prerequisites

This instruction provides procedure for pasting Posterior Array (PA) Coil Identification Label on the SV fixed table of below types:

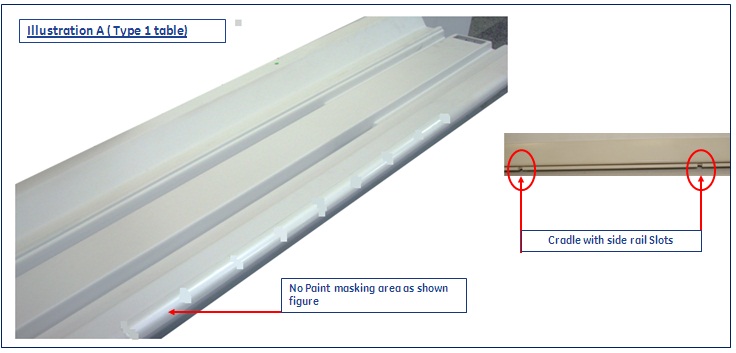

  • Type 1 SV Fixed Table - Label pasting procedure for tabletops without paint masking with Side rails slots (Refer Illustration A)

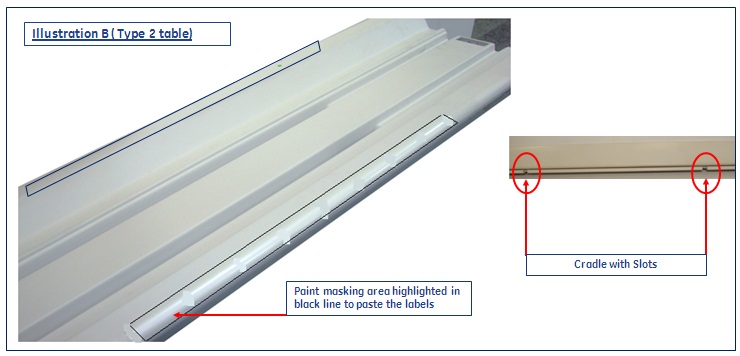

  • Type 2 SV Fixed Table - Label pasting procedure for tabletops with paint masking area with Side rails slots (Refer Illustration B)

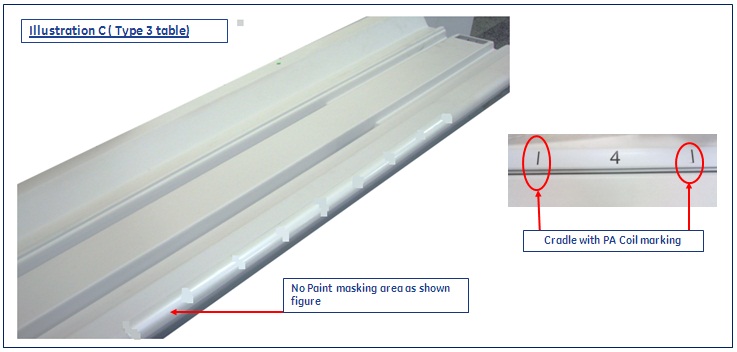

  • Type 3 SV Fixed Table - Label pasting procedure for tabletops with Position array (PA) coil marking on cradle (no Side rails slots). Refer Illustration C

1 Preparation of surface to paste the labels on Tabletop:

Using cotton waste clean the tabletop surface with appropriate cleaning agent and ensure the label pasting area is free from dirt's or Oil or Greases. Note: This need to be performed for all the 3 types of tables as mentioned above.

2 Type1 Table - Label pasting procedure for Tabletops without paint masking area with Side rails slots

Procedure

  1. Paste the RH Label (5380742) in the right side of tabletop as shown in Figure 1 at a distance of 555+/- 2(mm) from magnet end of table refer Figure 1 and 6+/-1(mm) above the side bumper as show in Figure 2, now drag it / at the same time press it using the finger (use normal hand pressure) from the fixed end of the label, this will avoid air gaps between label and tabletop surface as shown in Figure 4. Do ensure uniform gap is maintained along the length of the label & side bumper.

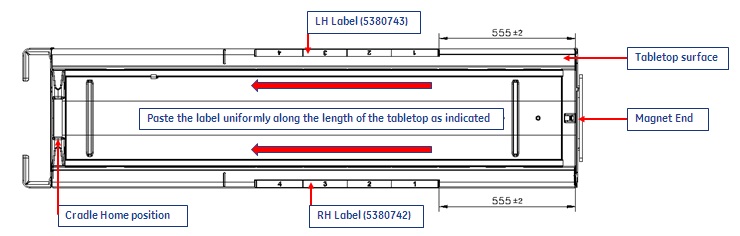

    Figure 1.

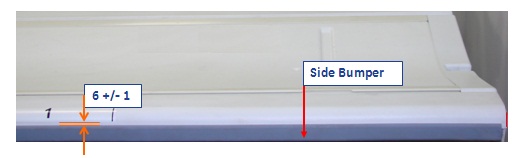

    Figure 2.

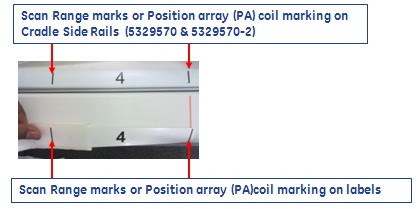

    Figure 3.

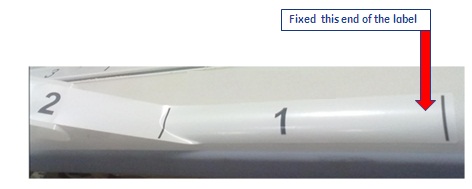

    Figure 4.

  2. Follow the same procedure to the paste the LH Label (5380743) in the Left side of tabletop.
  3. After pasting the labels, at cradle home position (if not move the cradle to home position) visually check the cradle side rails slots matching with the label scan range marks as shown in Figure 3.

3 Type 2 SV Fixed Table - Label pasting procedure for tabletops with paint masking area with Side rails slots

Procedure

  1. Paste the RH Label (5380742) in the right side of tabletop within paint masking area (refer illustration B) along the length of the table as shown in Figure 1, now drag it / at the same time press it using the finger (use normal hand pressure) from the fixed end of the label, this will avoid air gaps between label and tabletop surface as shown in Figure 4
  2. Follow the same procedure for pasting the LH Label (5380743) in the Left side of tabletop paint masking area.
  3. After pasting the labels, at cradle home position(if not move the cradle to home position) visually check the cradle side rails slots as shown in Figure 3 matching with the label scan range marks.

4 Type 3 SV Fixed Table - Label pasting procedure for tabletops with Position array (PA) coil marking on cradle (without side rails slots)

Procedure

  1. Move the cradle to the home position.
  2. Paste the RH Label (5380742) in the right side of tabletop by aligning with existing Position array (PA) coil marking on cradle as shown in Figure 5 and 6+/-1 (mm) above the side bumper as show in Figure 2, now drag it / at the same time press it using the finger (use normal hand pressure) from the fixed end of the label, this will avoid air gaps between label and tabletop surface as shown in Figure 4. Do ensure uniform gap is maintained along the length of the label & side bumper.
  3. Follow the same procedure for pasting the LH Label (5380743) in the Left side of tabletop.
  4. After pasting the labels, at cradle home position visually check the cradle Position array (PA) coil marking aligning with the label Position array (PA) coil marking as shown in Figure 6

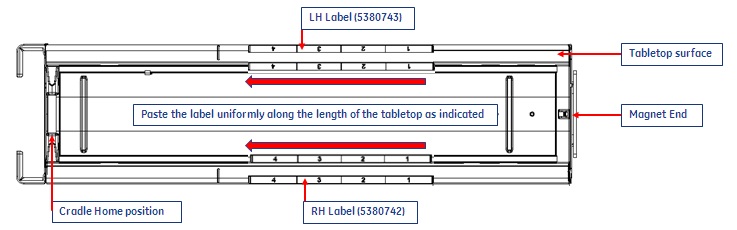

    Figure 5.

    Figure 6.
