Cradle Release Pin Height Adjustment

Prerequisites

Procedure

  1. Remove Cradle Assembly from Patient Transport per procedure in Removing Cradle Assembly.
  2. Remove all outer and inner trim covers from sides of Patient Transport.
  3. Tighten or loosen the cable adjustment screw so that the cradle release pin is flush to 1/16 inch (1.59 mm) below the level of the table top. See Figure 1 and Figure 2.

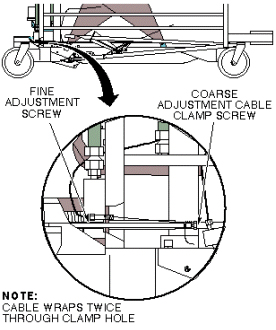

    Figure 1. CRADLE RELEASE PIN HEIGHT ADJUSTMENT

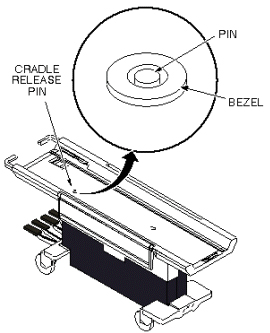

    Figure 2. CRADLE RELEASE PIN HEIGHT

Finalization

No finalization steps.
