Clean Dust Filter / Dust Filter Replacement

Prerequisites

Procedure

  1. Shutdown the system software and Lockout/Tagout the power to the GOC before beginning the replacement.
  2. Wear the static electricity prevention band to the wrist.
  3. Spread the static electricity prevention sheet for replacement
  4. Loosen the four screws that is fixing the bracket on the PC rear panel and take the bracket away.
    note:

    A seal might be attached at the PC rear panel which describes "Warranty void if this seal removed". Please do not care about description of the label and remove it for panel removal.

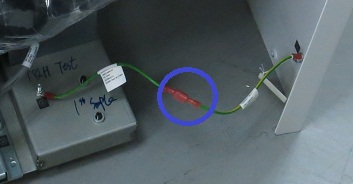

  5. Remove the Side cover by unscrewing the two screws and disconnect the ground cable.

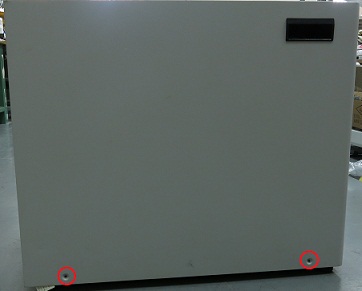

    Figure 1. Removing the Side cover

  6. Remove dust filter.

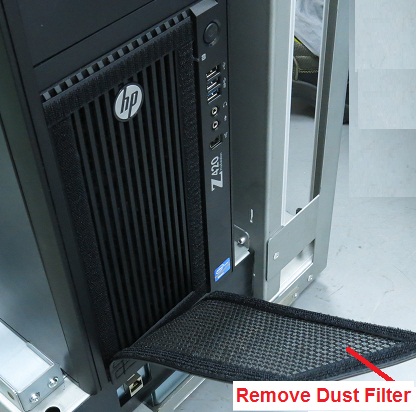

    Figure 2. Remove dust filter.

  7. Clean Dust Filter and restore it. If necessary, replace to the new dust filter.
  8. Install the side cover.

Finalization

  1. Restore the system.
  2. Turn the system power on. Verify system boot up without any problem.
  3. Perform one body or head scan.
