Cable Installation
Prerequisites
Procedure
- notice
- Do not cut gradient cables from BRM.
- Route Runs M3529, M3530, and M3531 To Rear Pedestal Area

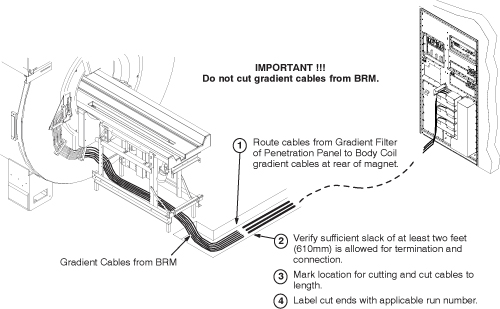

Figure 1. Route Runs M3529, M3530, and M3531 To Rear Pedestal Area
- Terminate Runs M3529, M3530, and M3531 For Magnet Room.

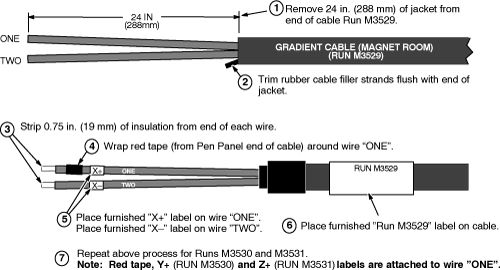

Figure 2. Terminate Runs M3529, M3530, and M3531 For Magnet Room
- Connection Of Gradient Cables from BRM To Runs M3529, M3530,
and M3531
Figure 3. Connection Of Body Coil Gradient Cables To Runs M3529, M3531, and M3531
 |
Finalization
No finalization steps.
