1.5T HD 8Ch CTL Coil Setup for SNR Test
Prerequisites
Procedure
- Place the coil on the patient table and latch it to the table.

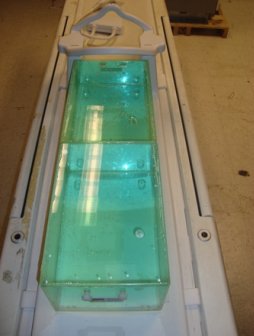

- Place the TL unified phantoms on the centre of the TL section
of the coil as shown inFigure 1.
Figure 1. Place the TL unified phantoms

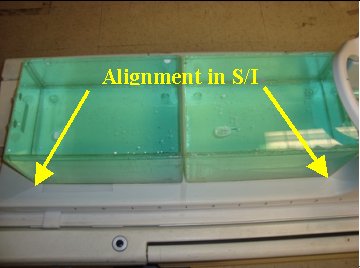

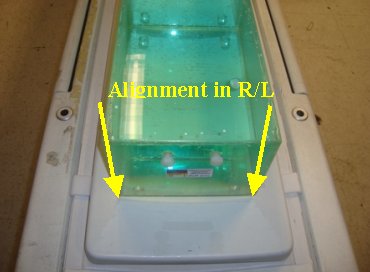

- Align the phantoms to the centre in S/I and R/L directions as
shown in Figure 2 and Figure 3.
Figure 2. Align the phantoms (1)
Figure 3. Align the phantoms (2)
- Place the large cylindrical unified phantom on the CT section
and fix the C-Spine Bridge to the hooks provided as shown in Figure 4.
Figure 4. large cylindrical unified phantom
- Adjust the large cylindrical unified phantom such that it is
in complete contact with the TL unified phantom (Figure 5).
Figure 5. Adjust the large cylindrical unified phantom
- Adjust TL unified phantoms such that both the phantoms are in
complete contact with each other as shown in Figure 6.
Figure 6. Adjust TL unified phantoms
- Connect the coil to respective port of the system LPCA.

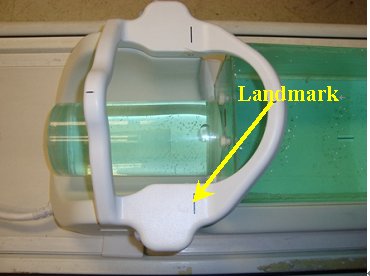

- Landmark the coil at the cross mark line on the C-Spine Bridge
(Figure 7) and advance to scan.
Figure 7. Landmark
- Perform Multi-Coil Quality Assurance Tool.
Finalization
No finalization steps.
