1.5T Body T/R SW & Hybrid

Prerequisites

Procedure

  1. Remove Rear Pedestal right cover.
  2. Remove all cables from 1.5T Body T/R SW & Hybrid.
  3. Loosen 2 screws at the lower fixture. Do not remove the screws.
  4. Remove one screw, spacer and 3 fixtures at the top side.
  5. Tilt and remove 1.5T Body T/R SW & Hybrid.

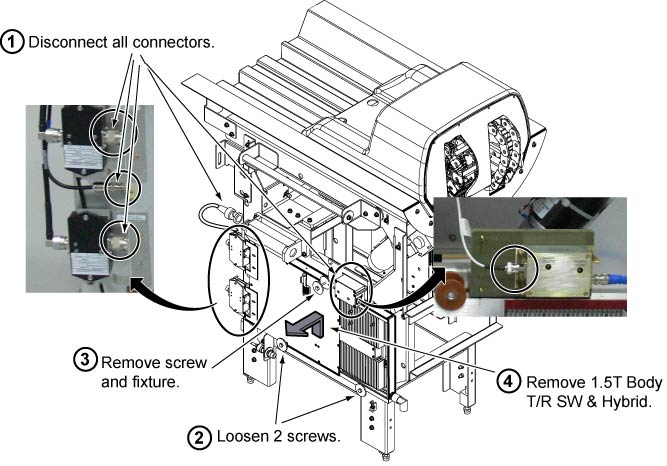

    Figure 1. 1.5T Body T/R SW & Hybrid

  6. Remove Isolation Boxes from defective Body T/R SW & Hybrid and install them to new Body T/R SW & Hybrid.

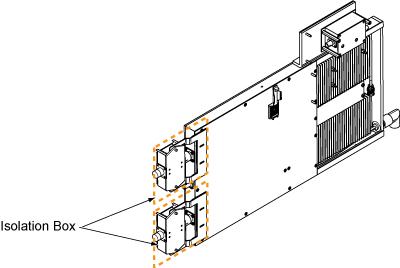

    Figure 2. Isolation Box

  7. Restore it by the reverse order of the removal.

Finalization

  1. Restore the Power. Refer to Lockout / Tagout for 1.5T System Cabinet PDU Main Breaker.
  2. Run one head or body scan.
