CSA Troubleshooting Flow Chart

1 CSA Troubleshooting Flow Chart

Follow the Flow Chart below and identify the CSA problem.

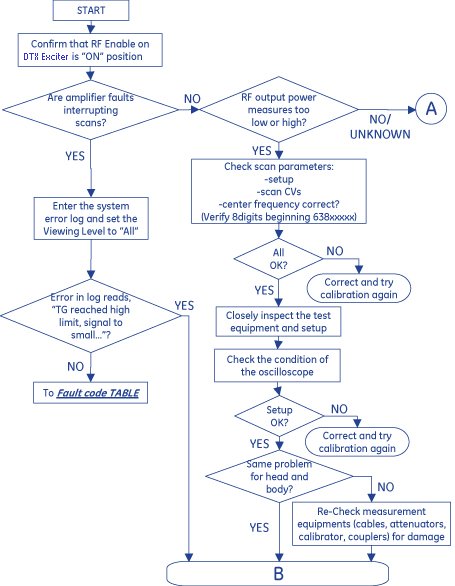

Figure 1. Flow Chart 1

1.5T CSA RF fault code and Error Condition/Recommended Actions

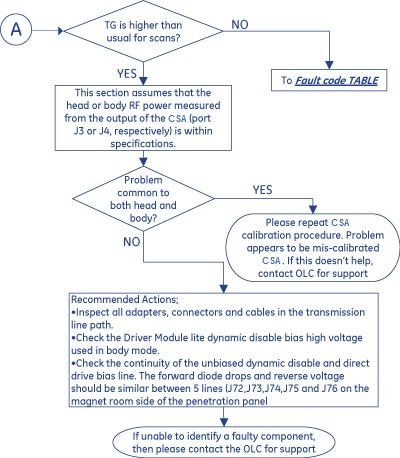

Figure 2. Flow Chart 2

1.5T CSA RF fault code and Error Condition/Recommended Actions

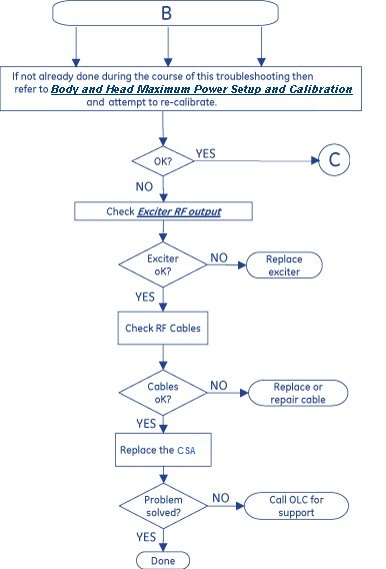

Figure 3. Flow Chart 3

Body and Head Maximum Power Setup and Calibration DTx Exciter

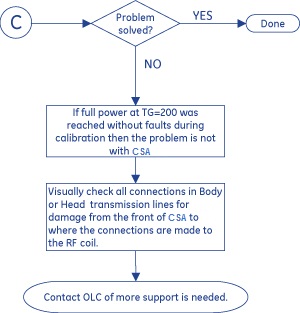

Figure 4. Flow Chart 4

2 1.5T CSA RF fault code and Error Condition/Recommended Actions

Table 1 contains a list of 1.5T CSA RF fault code and Error Condition/Recommended Actions. If the fault code is not listed in the table, then contact the OLC for support
