RF Amp Diagnostics

Diagnostics >> System Function >> RF >>RF Amplifier Diagnostics

Diagnostics >> Hardware Location >> System Cabinet >> RF >>RF Amplifier Diagnostics

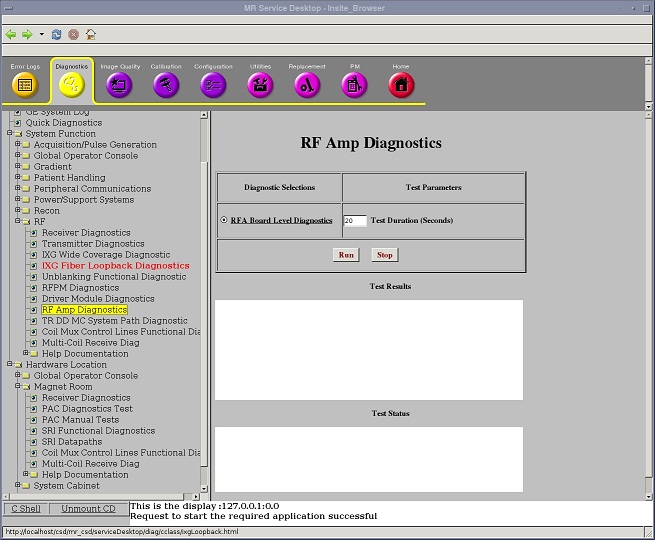

Figure 1. RF Amp Diagnostics

The RF Amp Diagnostic reads the board level information from RF Amp.

This document describes the theory of each test in RF Amplifier Diagnostics.

This diagnostic provides self-test functions of internal amplifier circuitry. This self-test is performed on a measurement function of PSU +48V Voltage Measurement Circuit. The test signal that is input from the amplifier to control board is replaced by a test voltage that is generated by circuitry on the control board under software control. For Measurement Circuit Test, the diagnostic will inject a test voltage into the measurement circuit, cause an analog to digital conversion to occur, and read and compare the conversion results to an expected value.

This diagnostic provides self-test functions of internal amplifier circuitry. This self-test is performed on a measurement function of PSU High Current Measurement Circuit. The test signal that is input from the amplifier to control board is replaced by a test voltage that is generated by circuitry on the control board under software control. For Measurement Circuit Test, the diagnostic will inject a test voltage into the measurement circuit, cause an analog to digital conversion to occur, and read and compare the conversion results to an expected value.

This diagnostic provides self-test functions of internal amplifier circuitry. This self-test is performed on a measurement function of Cold Plate Temperature Measurement Circuit. The test signal that is input from the amplifier to control board is replaced by a test voltage that is generated by circuitry on the control board under software control. For Measurement Circuit Test, the diagnostic will inject a test voltage into the measurement circuit, cause an analog to digital conversion to occur, and read and compare the conversion results to an expected value.

This diagnostic provides self-test functions of internal amplifier circuitry. This self-test is performed on a measurement function of Junction Temperature Measurement Circuit. The test signal that is input from the amplifier to control board is replaced by a test voltage that is generated by circuitry on the control board under software control. For Measurement Circuit Test, the diagnostic will inject a test voltage into the measurement circuit, cause an analog to digital conversion to occur, and read and compare the conversion results to an expected value.

This diagnostic provides self-test functions of internal amplifier circuitry. This self-test is performed on a measurement function of Input Power Measurement Circuit. The test signal that is input from the amplifier to control board is replaced by a test voltage that is generated by circuitry on the control board under software control. For Measurement Circuit Test, the diagnostic will inject a test voltage into the measurement circuit, cause an analog to digital conversion to occur, and read and compare the conversion results to an expected value.

This diagnostic provides self-test functions of internal amplifier circuitry. This self-test is performed on a measurement function of Reflect Power Measurement Circuit. The test signal that is input from the amplifier to control board is replaced by a test voltage that is generated by circuitry on the control board under software control. For Measurement Circuit Test, the diagnostic will inject a test voltage into the measurement circuit, cause an analog to digital conversion to occur, and read and compare the conversion results to an expected value.

This diagnostic provides self-test functions of internal amplifier circuitry. This self-test is performed on a measurement function of Forward Power Measurement Circuit. The test signal that is input from the amplifier to control board is replaced by a test voltage that is generated by circuitry on the control board under software control. For Measurement Circuit Test, the diagnostic will inject a test voltage into the measurement circuit, cause an analog to digital conversion to occur, and read and compare the conversion results to an expected value.

This diagnostic tests the auxiliary PSU voltage (+15 Volts) of internal amplifier.

This diagnostic tests the auxiliary PSU voltage (-15 Volts) of internal amplifier.

This diagnostic tests the auxiliary PSU voltage (+48 Volts) of internal amplifier.

This diagnostic tests the auxiliary PSU voltage (High Voltage; +165 Volts) of internal amplifier.
