IXG Wide Coverage Diagnostic

1 Diagnostic Link

Diagnostics >> System Function >> RF >> IXG Wide Coverage Diagnostic

Diagnostics >> Hardware Location >> System Cabinet >> RF >> IXG Wide Coverage Diagnostic

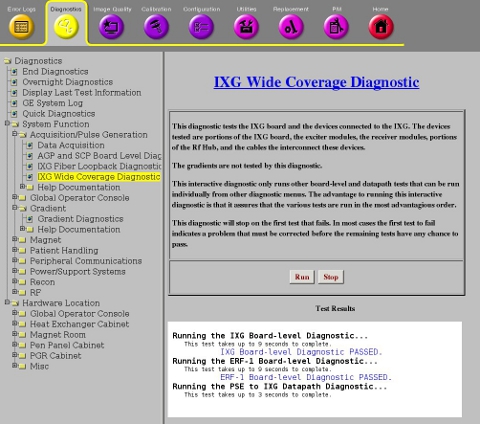

Figure 1. IXG Wide Coverage Diagnostic

2 Purpose

The IXG Wide Coverage Diagnostic is an interactive test that invokes other IXG related diagnostics in an optimal order. The diagnostic stops at the first error found and prints a red message to the screen indicating that this error must be corrected before continuing.

The sub-diagnostics are run in this order:

  1. IXG BLD

  2. PSE to IXG DP

  3. Exciter Module BLD

  4. Receiver Module BLD

  5. PSE to Exciter and Receiver DP

  6. Exciter, Mega Switch and Receiver Cal

  7. Exciter to Mega Switch to Receiver DP

  8. TNS DP

note:

This diagnostic only runs other board level and datapath tests that can be run individually from other diagnostic menus.

3 Components Tested

  • IXG Board

  • Exciter Module

  • Receiver Modules (RRX)

  • Mega Switch

  • Cables that interconnect these devices

4 Requirements

None

5 Test Sequence

The sub-diagnostics are run in this order:

  1. Click Run.

  2. Ensure that the diagnostic passes by reviewing the status in the Test Results table.

6 Expected Results

This diagnostic has either a passed or failed status. If the diagnostic has failed, please review the error log and corresponding extended error message for subsequent actions.

In the event that the diagnostic reports a timeout, the diagnostic may not have been executed. Retry the test. If it continues to time out, complete a TPS Reset and then retry the test.
