VRE Help Page

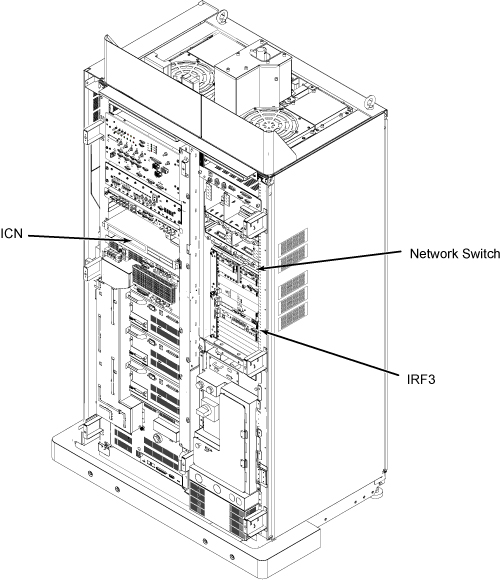

Figure 1. VRE parts location

The VRE (Volume Reconstruction Engine) consists of:

  • • IRF3 board (located in CAM-Lite2 Chassis, slot 7)

  • • Network Switch (located on the CAM-Lite2 Chassis in SC cabinet )

  • • ICN Module (Located in SC cabinet)

The VRE is responsible for image reconstruction. The ICN id data processors which receive image data through the IRF3 via network communication.

Available Diagnostics for testing the VRE:

  • VRE Communication Diagnostics

  • VRE Hardware Diagnostics

  • VRE Reconstruction Diagnostics

  • VRE Sensors Display

  • VRF Communication Diagnostics

  • VRF Manual Diagnostics

  • VRF Status Display
