System Cabinet

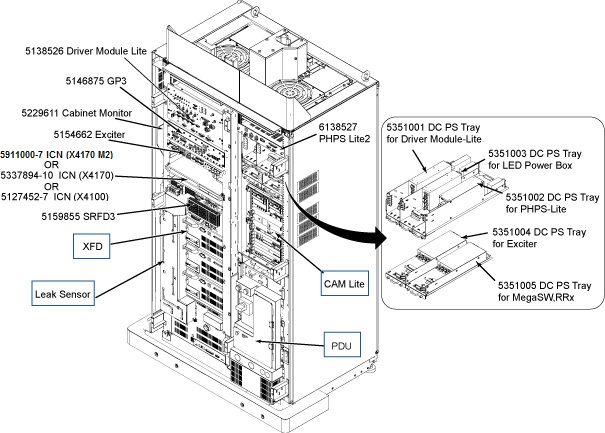

Figure 1. System Cabinet

XFD Leak Sensor CAM-lite2 for SV PDU Assy

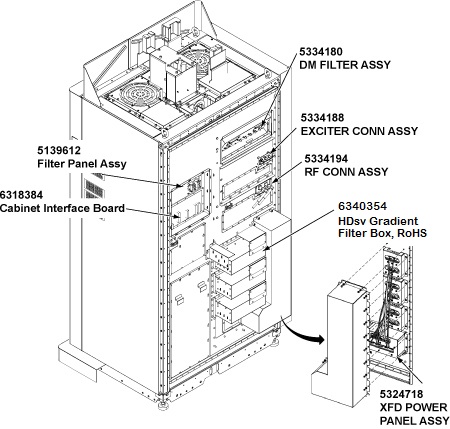

Figure 2. Rear Panel

Figure 3. Leak Sensor

1 HDsv CABINET FRAME ASSY

1.1 PDU Assy

Figure 4. PDU Assy

1.2 Collector of SV 1.5T cabinet AC cables

1.2.1 Collector of SV 1.5T cabinet AC cables

2 XFD

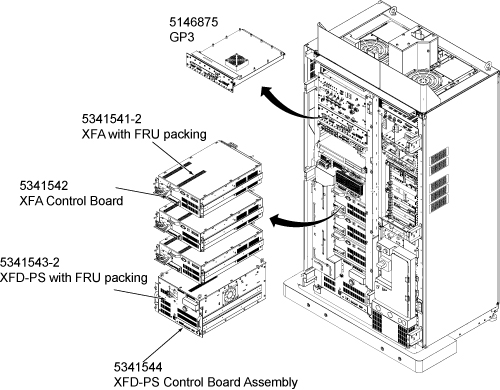

Figure 5. XFD

2.1 XFA with packing box for normal shipment

2.2 XFD-PS with packing box for normal shipment

2.3 GP3 ASSEMBLY FOR Value1.5T

3 CAM-lite2 for SV

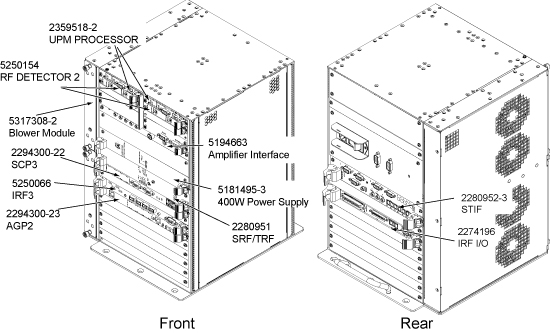

Figure 6. CAM-lite2 for SV

3.1 CAM LITE 2 Chassis Assembly
