System Cabinet

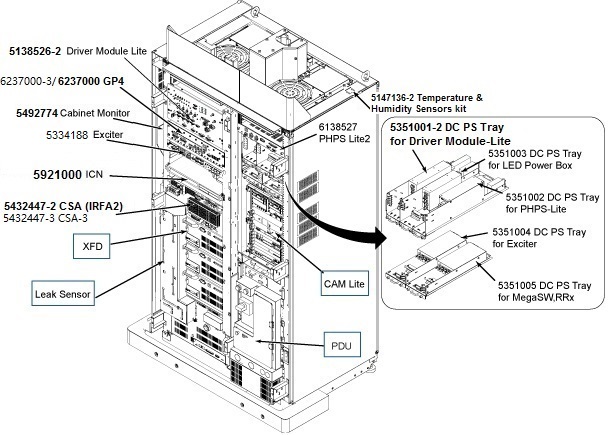

Figure 1. System Cabinet

XFD Leak Sensor CAM-lite3 for SV PDU Assy

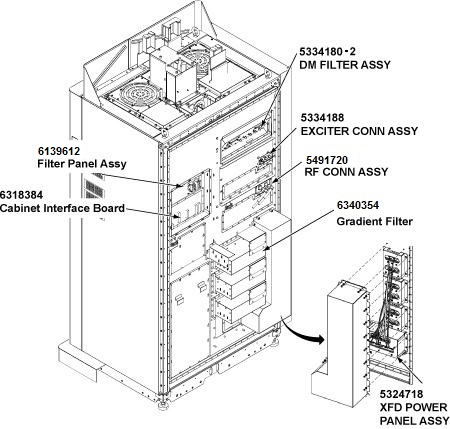

Figure 2. Rear Panel

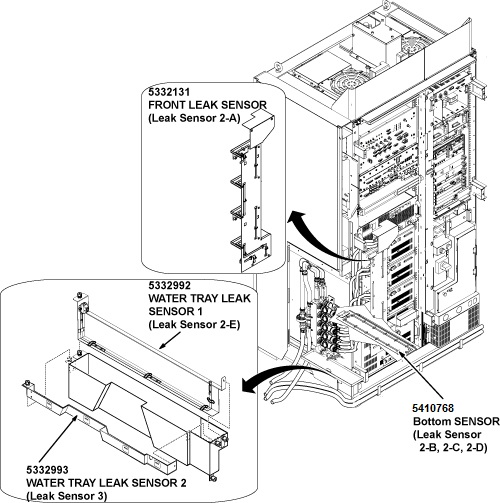

Figure 3. Leak Sensor

1 HDsv CABINET FRAME ASSY

1.1 PDU Assy

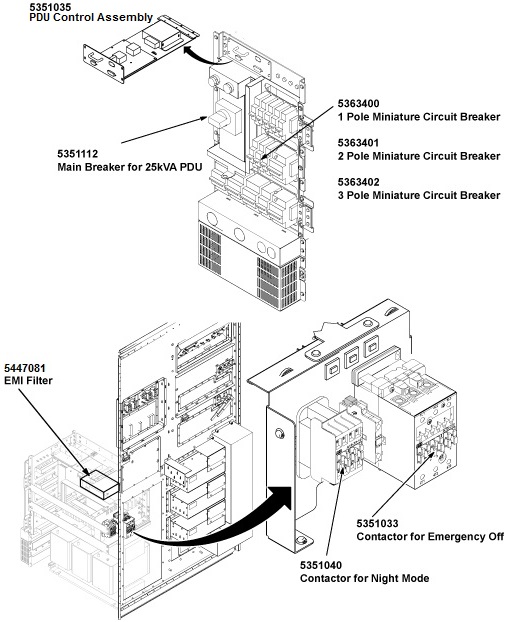

Figure 4. PDU Assy

1.2 Collector of SV 1.5T cabinet AC cables

1.2.1 Collector of SV 1.5T cabinet AC cables

2 XFD

Figure 5. XFD

2.1 XFA with packing box for normal shipment

2.2 XFD-PS with packing box for normal shipment

2.3 GP4 Assembly

3 CAM-lite3

Figure 6. CAM-LITE3 HLA with PSE and IXG for SV-ROHS

3.1 CAM LITE 3 Chassis Assembly

4 Image Compute Node: ICN (DV Gen5 16CH ICN)

5 16BEAT DM FILTER ASSY
