Service Licensing (SV23.1 Later)

1 Overview

Secure Service Access (SSA) is a secure service key platform for GE medical devices developed to improve the service license renewal and replacement processes. The SSA license is a softkey (software file) for GE service tools and information. This license is assigned to one specific system and can be downloaded by GE customers or service providers.

Multiple service license levels are available to manage access to different features, tools, and service methods. Contact your local GE service or sales representative for more information.

Sites must generate and install a service license for the following reasons:

  • New system Installation

  • Software upgrade

  • GOC component hardware replacement

  • System date or time change

  • System language change

2 Access Service License ID (16-Digit Code)

note:

The system language must be decided before getting the service license ID. If the language is changed on the system, it will also change the 16-digit Service License ID assigned to the system and cause the existing license to fail.

To request a service license, you need the unique 16-digit code, called a Service License ID, that is assigned to the system. This ID is needed to configure and activate a service license softkey. It is a unique ID, meaning each system has a different code.

To access the Service License ID, go to the operator console, click the drop-down arrow on the Tools icon, and select Install Service License. The Service License information window displays, containing the Service License ID.

note:

The numerical character for zero is a circle with a dot in the center (⊙). Be careful when recording your service license ID because zeros can be mistaken for the letter O, and vice versa. The uppercase letter O and the lowercase letter o do not have a dot in the middle.

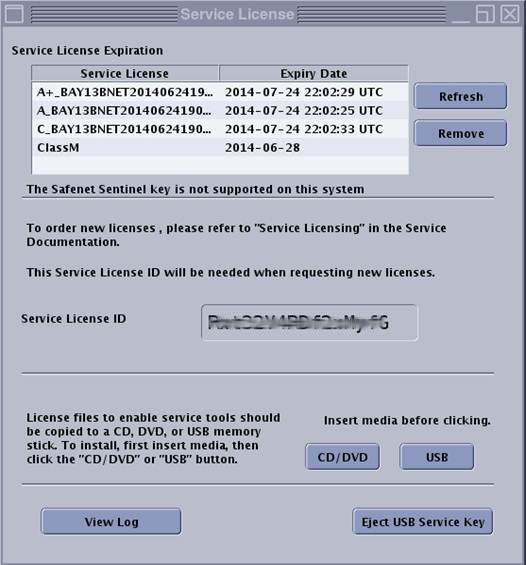

Figure 1. Example of Service License Window

note:

This example displays each level of service class license. Only the service license level available for a given system will display in that system’s window.

3 Order Service License Softkey (Systems Not Under GE Service Contract)

To request a service license softkey, the customer must contact the local GE service center by telephone. The telephone number can be found on the system tag. The local service center collects the site information and forwards the request to the regional representative for approval.

When calling, the customer must have the following information ready:

  • Customer name and location

  • System identification number

  • Service License ID

  • Email address where the softkey should be sent

After the request is submitted, the license is typically approved by the regional representative within three business days. Load the license softkey on the system as described below.

For urgent situations, a temporary 3-day license can be requested from GE Online Center for use during the waiting period.

The service license softkey expires in one year from the date created. The GE field engineer is not responsible for customer service license renewal after warranty.

4 Load Service License Softkey

  1. After the request is approved, an email is sent to the email address provided with the request. Use the email link to download the license softkey.

  2. To transfer the software license file to the system, save the license on either a USB stick or DVD.

    Multiple license softkeys can be saved to the same USB stick or DVD.

  3. To access the Service License ID, go to the operator console, click the drop-down arrow on the Tools icon, and select Install Service License.

  4. Insert the USB stick or DVD where you saved the license softkey, and select CD/DVD or USB.

    The system will automatically load the correct license softkey for a given system ID.

  5. Select the language for the system.

    The system language must be decided before getting the service license ID. If the language is changed on the system, it will also change the 16-digit Service License ID assigned to the system and cause the existing license to fail.

  6. When the installation is finished, eject the USB key correctly (using the Eject button) so it does not become corrupted.

note:

If a softkey has unexpectedly stopped working, check the time and date on the system. If the date or time has been changed, this causes the softkey to stop working. Change the date and time back to the previous setting to correct the issue.
