STANDARD PATIENT TRANSPORT 5455274

For Patient Table Straps and Pads FRU, see Straps and Pads for Patient Table

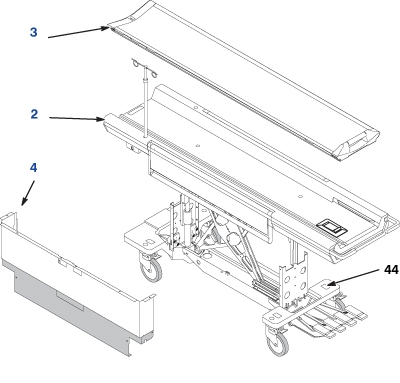

Figure 1. STANDARD PATIENT TRANSPORT 5455274

STANDARD PATIENT TRANSPORT 5455274 CRADLE ASSY 5159990 TABLE COVER KIT 5161680

1 TABLE BASE ASSY 5451341

Figure 2. TABLE BASE ASSY 5451341

TABLE BASE KIT 5456898 TABLE TOP 5438853 Table top assembly 5146627 Amboard assy 5449126 HYDRAULIC OIL FILTER AND GASKET FILTER 46-307878G1

1.1 TABLE BASE KIT 5456898

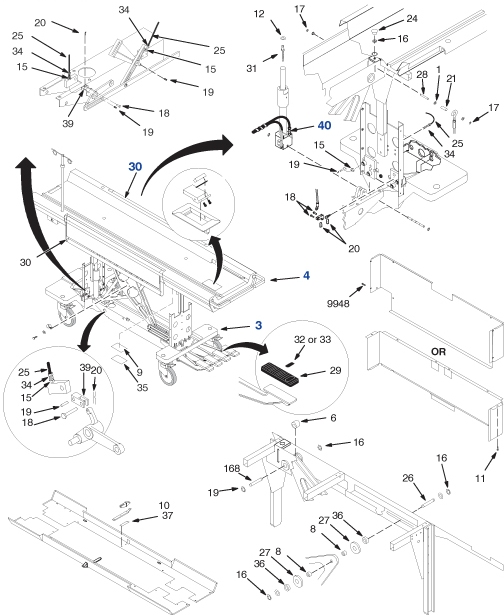

Figure 3. TABLE BASE KIT 5456898

View1 View2 View3 View4 View5 View6 View7 TABLE BASE ASSY 5451341 HOOK AREA

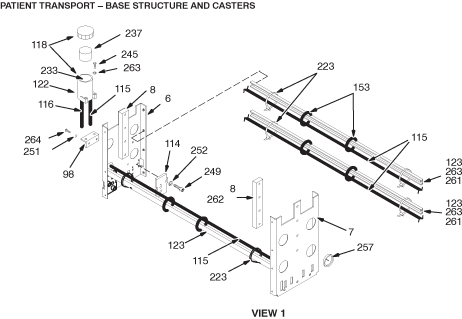

Figure 4. View1

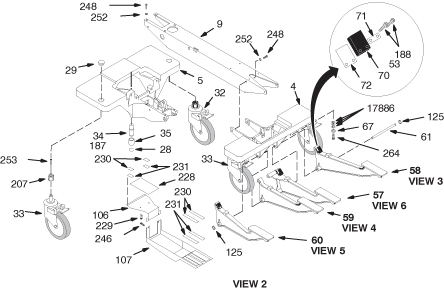

Figure 5. View2

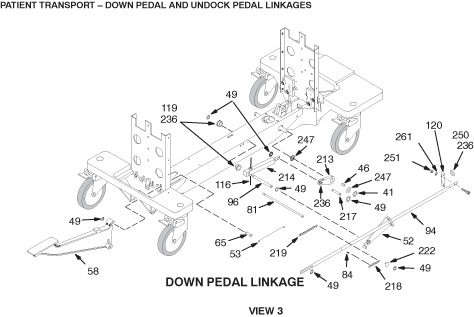

Figure 6. View3

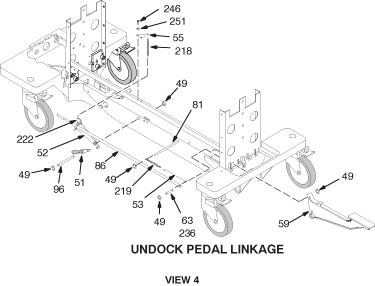

Figure 7. View4

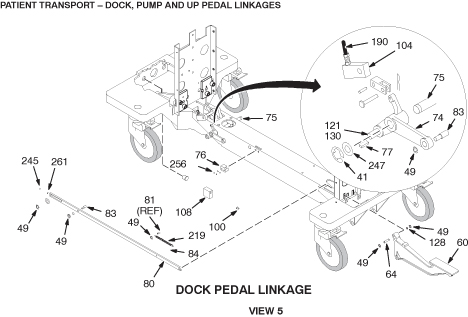

Figure 8. View5

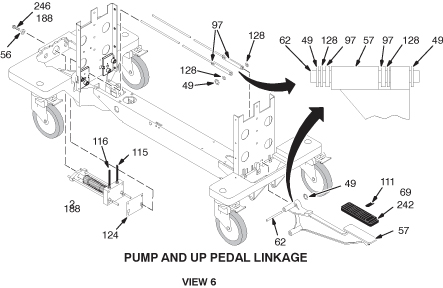

Figure 9. View6

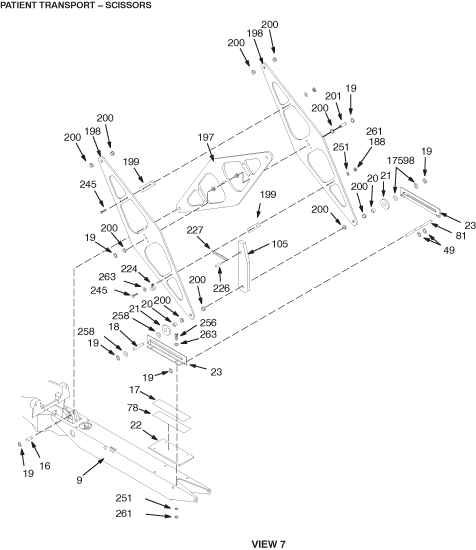

Figure 10. View7

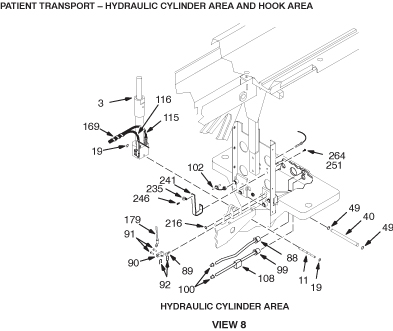

Figure 11. HYDRAULIC CYLINDER AREA

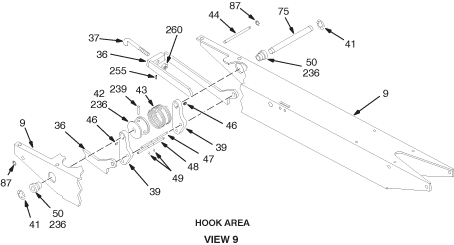

Figure 12. HOOK AREA

1.1.1 HYDRAULIC PUMP ASSEMBLY MRTBL2 PATIENT TRANSPORT 46-265779G1

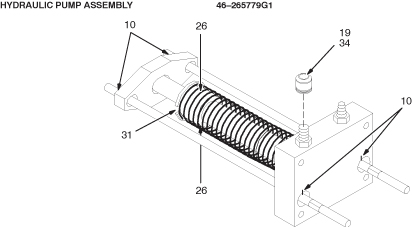

Figure 13. HYDRAULIC PUMP ASSEMBLY 46-265779G1

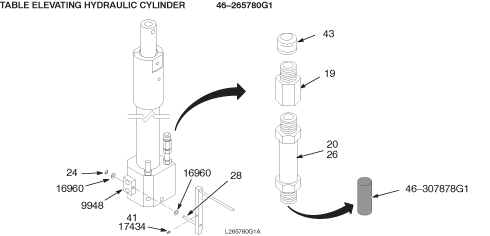

1.1.2 HYDRAULIC CYLINDER, TABLE ELEVATING MRTBL2 PATIENT TRANSPORT 46-265780G1

Figure 14. HYDRAULIC CYLINDER 46-265780G1

1.1.3 DOCK HOOK MOUNTING ARM WELDMENT ASM 46-271676G1

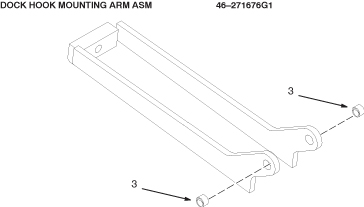

Figure 15. DOCK HOOK MOUNTING ARM ASM 46-271676G1

1.1.4 PUMP PEDAL ASM INFINITY COLOR 5450368

Figure 16. PUMP PEDAL ASM INFINITY COLOR 5450368

1.1.5 DOWN PEDAL ASM INFINITY COLOR 5457682

Figure 17. DOWN PEDAL ASM INFINITY COLOR 5457682

1.1.6 UNDOCK PEDAL ASM INFINITY COLOR 5443456

Figure 18. UNDOCK PEDAL ASM INFINITY COLOR 5443456

1.1.7 DOCK PEDAL ASM INFINITY COLOR 5461489

Figure 19. DOCK PEDAL ASM INFINITY COLOR 5461489

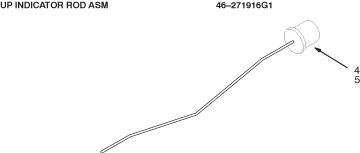

1.1.8 UP INDICATOR ROD ASSEMBLY 46-271916G1

Figure 20. UP INDICATOR ROD ASSEMBLY 46-271916G1

1.1.9 14.13~ LONG ALUM ROD W/BUMPER 46-271517G1

1.1.10 RIGHT ACTUATOR 46-271516G1

1.1.11 MECHANICAL LINKAGE 46-271576G1

1.2 TABLE TOP 5438853

Figure 21. TABLE TOP 5438853

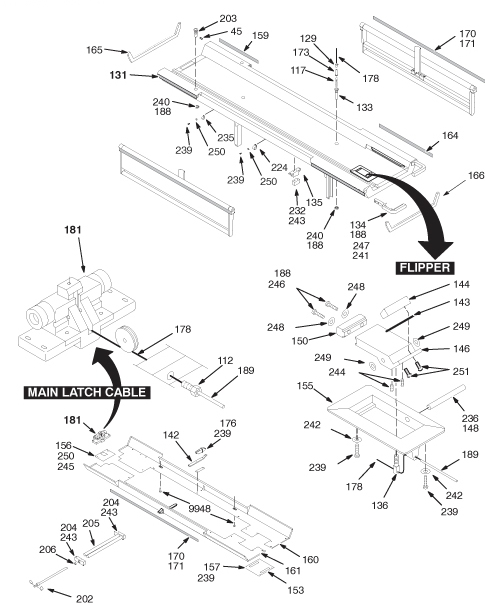

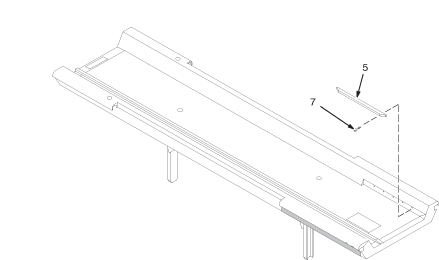

1.2.1 Table top assembly 5146627

Figure 22. Table top assembly 5146627

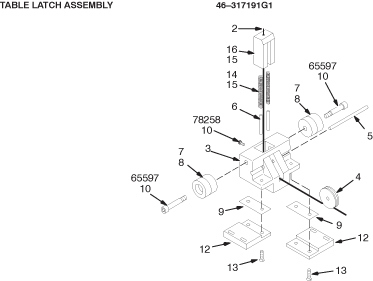

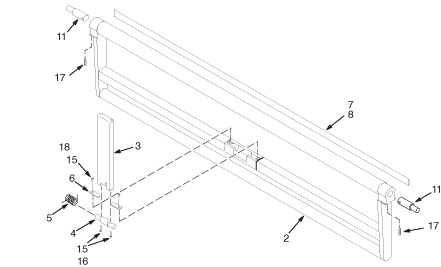

1.2.2 TABLE LATCH ASSEMBLY 46-317191G1

Figure 23. TABLE LATCH ASSEMBLY 46-317191G1

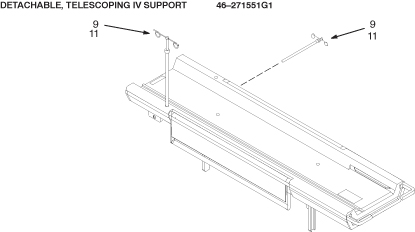

1.2.3 DETACHABLE, TELESCOPING IV SUPPORT MRTBL2 46-271551G1

Figure 24. DETACHABLE, TELESCOPING IV SUPPORT MRTBL2 46-271551G1

1.3 Amboard assy 5449126

Figure 25. Amboard assy 5449126

1.4 HYDRAULIC OIL FILTER AND GASKET FILTER 46-307878G1

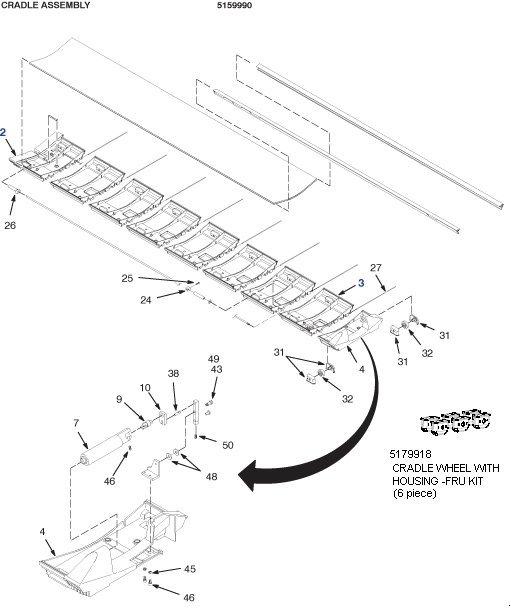

2 CRADLE ASSY 5159990

Figure 26. CRADLE ASSY 5159990

STANDARD PATIENT TRANSPORT 5455274 STANDARD PATIENT TRANSPORT 5455274

2.1 CRADLE FRONT SECTION ASSY　5159991

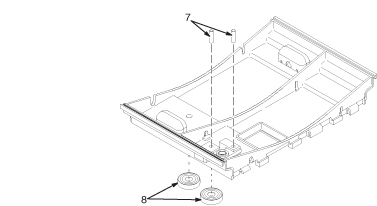

Figure 27. CRADLE FRONT SECTION ASSY　5159991

2.2 CRADLE MID SECTION ASSY　5159993

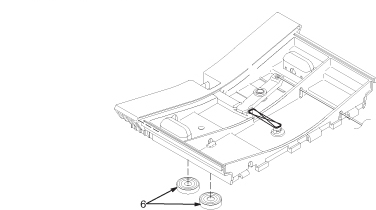

Figure 28. CRADLE MID SECTION ASSY　5159993

3 TABLE COVER KIT 5442084

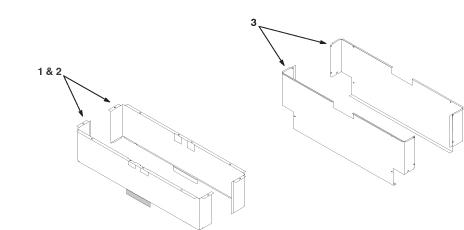

Figure 29. TABLE COVER KIT 5442084

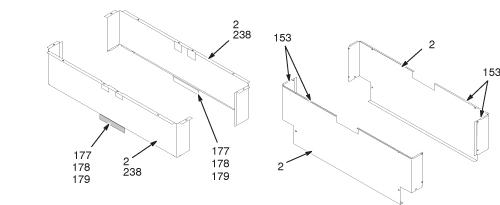

3.1 OUTER COVER 　5449777

Figure 30. OUTER COVER 　5449777

3.2 OUTER COVER　5449777–2

Figure 31. OUTER COVER　5449777–2
