Rear Pedestal

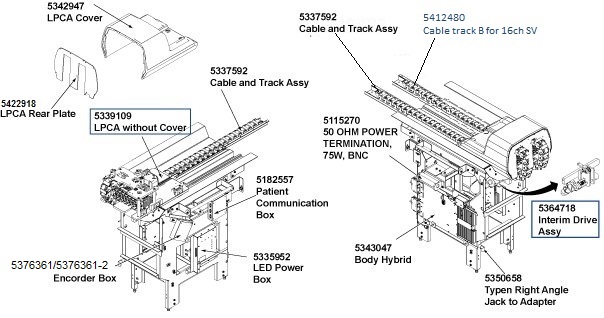

Figure 1. Rear Pedestal

SV REAR PEDESTAL MOTOR DRIVE ASSY LPCA without Cover, 16CH

Figure 2. Bezel

1 SV REAR PEDESTAL FRAME ASSY

2 SV REAR PEDESTAL MOTOR DRIVE ASSY

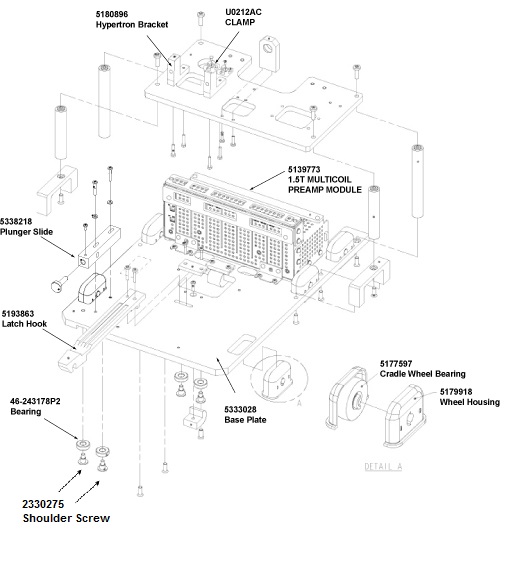

Figure 3. SV REAR PEDESTAL MOTOR DRIVE ASSY

2.1 Multicoil Interface Module for Vaule 1.5T and HDMR_2 5137347

2.2

3 LPCA without Cover, 16CH

Figure 4. LPCA without Cover, 16CH

3.1 SV LPCA SUB ASSY

4 Body Hybrid TR SW for SV
