Rear Pedestal

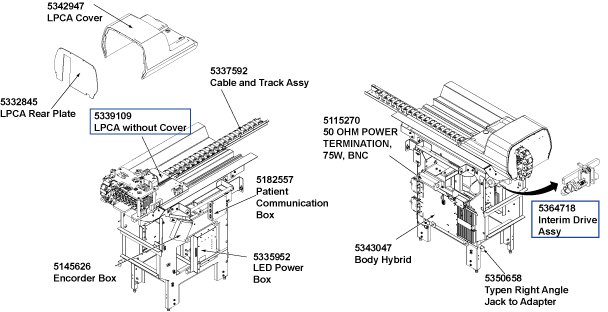

Figure 1. Rear Pedestal

SV REAR PEDESTAL MOTOR DRIVE ASSY SV LPCA without Cover, A port only

1 SV REAR PEDESTAL FRAME ASSY

2 SV REAR PEDESTAL MOTOR DRIVE ASSY

Figure 2. SV REAR PEDESTAL MOTOR DRIVE ASSY

2.1 Multicoil Interface Module for Vaule 1.5T and HDMR_2 5137347

2.2

3 SV LPCA without Cover, A port only

Figure 3. SV LPCA without Cover, A port only

3.1 SV LPCA SUB ASSY

4 Body Hybrid TR SW for SV
