PP COVER RF PANEL SET

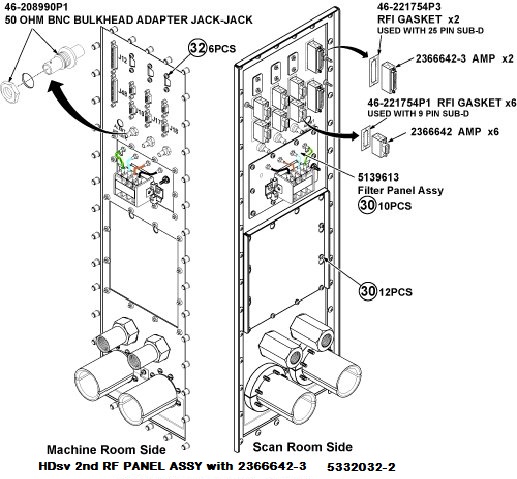

1 HDsv 2nd RF PANEL ASSY with 2366642-3

Table 1. HDsv 2nd RF PANEL ASSY with 2366642-3
Item	Part Number	Description	Qty	FRU	Lower Assy
10	5139613	Filter Panel Assy	1.0	Yes
11	2366642	CONNECTOR 9 CONTACTS 200 VOLTS 5 AMP	6.0	Yes
12	46-221754P1	RFI GASKET USED WITH 9 PIN SUB-D HDF OR HDP, METAL SHELL CONNECTORS. BRIGHT TIN PLATED BRASS, .006 THK	6.0	Yes
13	2366642-3	CONNECTOR 25CONTACTS 200 VOLTS 5 AMP	2.0	Yes
14	46-221754P3	RFI GASKET USED WITH 25 PIN SUB-D HDF OR HDP, METAL SHELL CONNECTORS. BRIGHT TIN PLATED BRASS, .006 THK	2.0	Yes
15	46-208990P1	50 OHM BNC BULKHEAD ADAP~R JACK-JACK (.510~ MGT HOLE, .187~ THICK PANEL) PRESSURIZED/GLASS-TFE, INSUL./INTERN AL LOCK WASHER TEETH.	3.0	Yes
30	N9408JM	SCREW PAN HEAD 4 MM 8 MM 316 osX4X8	22.0	Yes
32	N9306JM	SCREW PAN HEAD 3 MM 6 MM SCREW M3X6 osX SUS316	6.0	Yes

2 BNC Expander Board

note:

If it is necessary to use more than four BNC spare ports for troubleshooting purpose, the following BNC Expander Board is now available as FRU.

Table 2. BNC Expander Board
Item	Part Number	Description	Qty	FRU	Lower Assy
1	5366397	BNC Expander Board	1.0	Yes

Notice Image

notice

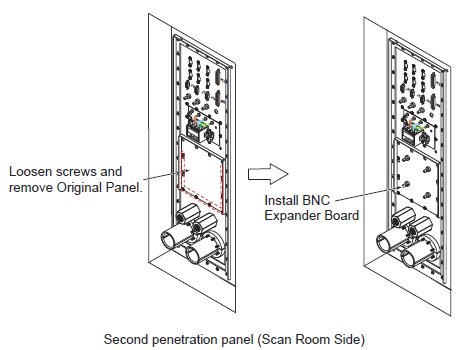

Please always restore the original panel and do NOT leave the BNC Expander Board on second PP.
The system performance of patient scan is not guaranteed if this BNC Expander Board is attached on second PP.
