Leak Sensor Location and Function
There are two Leak sensor routes.
note:
Leak Sensor 1 is not used for Optima MR360/Brivo MR355 system
-
Leak Sensor 2
-
Leak Sensor 3
When leak sensor detects the leakage, cabinet monitor will react as follows.
-
If the Leak Sensor2 detects the leakage, LK2 LED is lit and error message is displayed on Host and Emergency Stop will work.
-
If the Leak Sensor3 detects the leakage, LK3 LED is lit and error message is displayed.

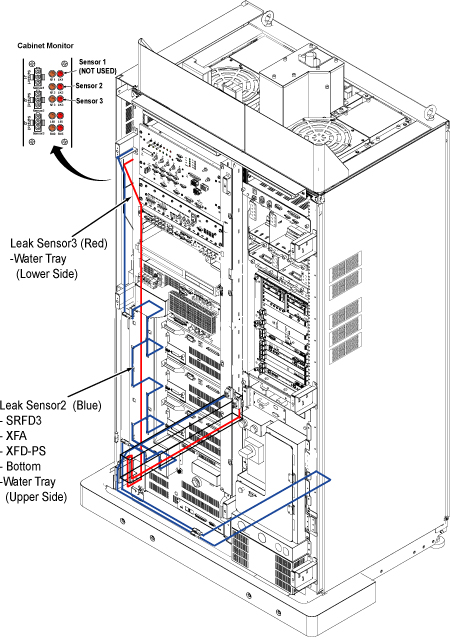

Figure 1. leak sensor routing
